Matrix: vanHeukelum/cage11

Description: DNA electrophoresis, 11 monomers in polymer. A. van Heukelum, Utrecht U

vanHeukelum/cage11 graph
(undirected graph drawing)


vanHeukelum/cage11

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: vanHeukelum
  • Click here for a description of the vanHeukelum group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(912) or UFget('vanHeukelum/cage11') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows39,082
    number of columns39,082
    nonzeros559,722
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 18%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. van Heukelum
    editorT. Davis
    date2003
    kinddirected weighted graph
    2D/3D problem?no

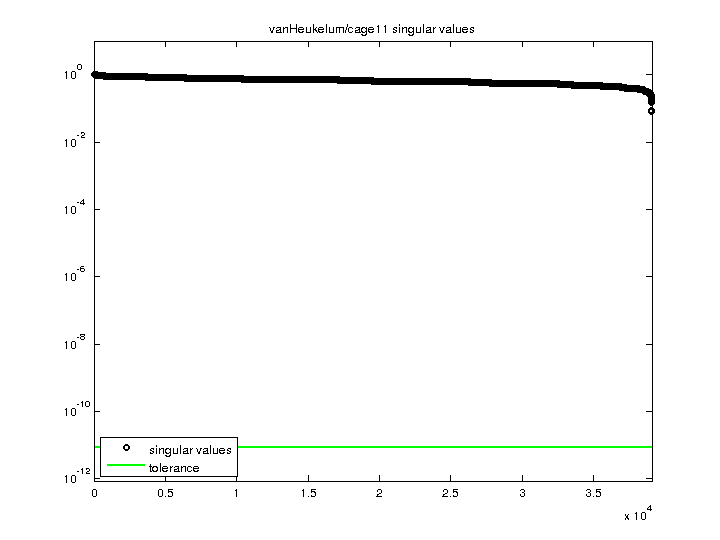

    SVD-based statistics:
    norm(A)1.02079
    min(svd(A))0.0831911
    cond(A)12.2704
    rank(A)39,082
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    vanHeukelum/cage11 svd

    For a description of the statistics displayed above, click here.
