Matrix: Zitney/rdist3a

Description: Chemical process separation, Steve Zitney, Cray Research

Zitney/rdist3a graph Zitney/rdist3a graph
(bipartite graph drawing) (graph drawing of A+A')

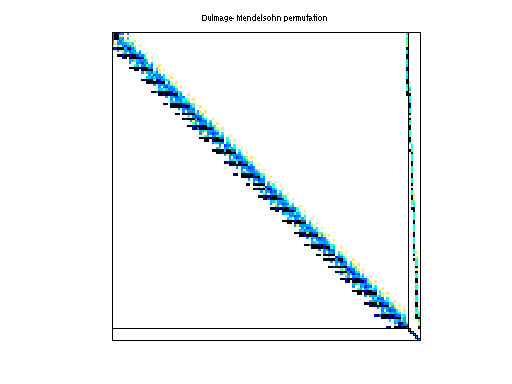

Zitney/rdist3a dmperm of Zitney/rdist3a
scc of Zitney/rdist3a

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Zitney
  • Click here for a description of the Zitney group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 473 KB. Use UFget(841) or UFget('Zitney/rdist3a') in MATLAB.
  • download in Matrix Market format, file size: 635 KB.
  • download in Rutherford/Boeing format, file size: 587 KB.

    Matrix properties
    number of rows2,398
    number of columns2,398
    nonzeros61,896
    structural full rank?yes
    structural rank2,398
    # of blocks from dmperm99
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetry 14%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorS. Zitney
    editorT. Davis
    date1992
    kindchemical process simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD429,153
    Cholesky flop count1.3e+08
    nnz(L+U), no partial pivoting, with AMD855,908
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD92,347
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD161,854

    SVD-based statistics:
    norm(A)1144.23
    min(svd(A))7.09923e-05
    cond(A)1.61176e+07
    rank(A)2,398
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

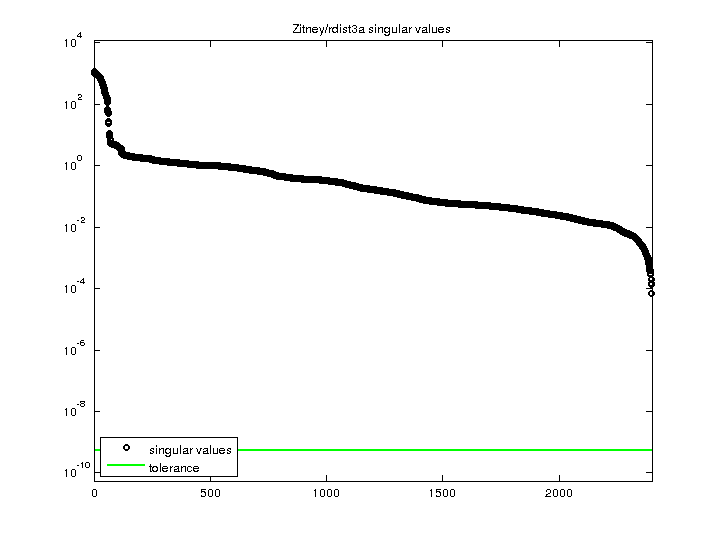

    Zitney/rdist3a svd

    For a description of the statistics displayed above, click here.
