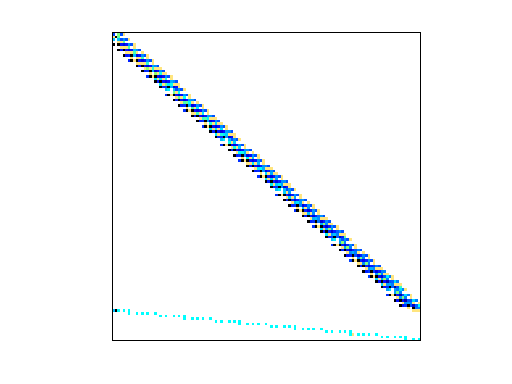

Matrix: Zitney/radfr1

Description: Chemical process separation, Steve Zitney, Cray Research

Zitney/radfr1 graph Zitney/radfr1 graph
(bipartite graph drawing) (graph drawing of A+A')

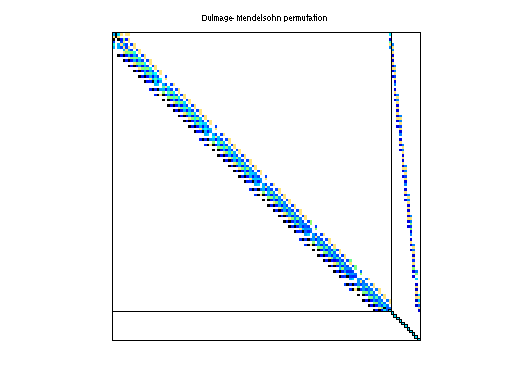

Zitney/radfr1 dmperm of Zitney/radfr1

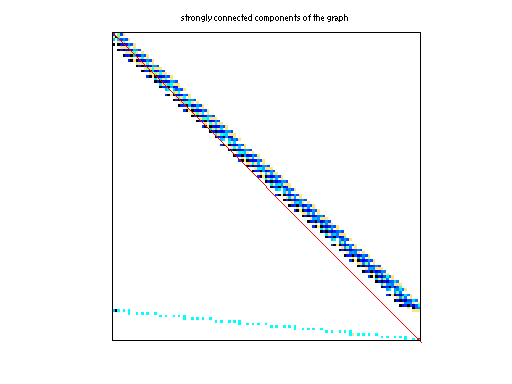

scc of Zitney/radfr1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Zitney
  • Click here for a description of the Zitney group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 100 KB. Use UFget(838) or UFget('Zitney/radfr1') in MATLAB.
  • download in Matrix Market format, file size: 133 KB.
  • download in Rutherford/Boeing format, file size: 127 KB.

    Matrix properties
    number of rows1,048
    number of columns1,048
    nonzeros13,299
    structural full rank?yes
    structural rank1,048
    # of blocks from dmperm98
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetry 5%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorS. Zitney
    editorT. Davis
    date1997
    kindchemical process simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD105,528
    Cholesky flop count1.8e+07
    nnz(L+U), no partial pivoting, with AMD210,008
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD17,131
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD31,856

    SVD-based statistics:
    norm(A)582.772
    min(svd(A))9.8286e-09
    cond(A)5.92935e+10
    rank(A)1,048
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

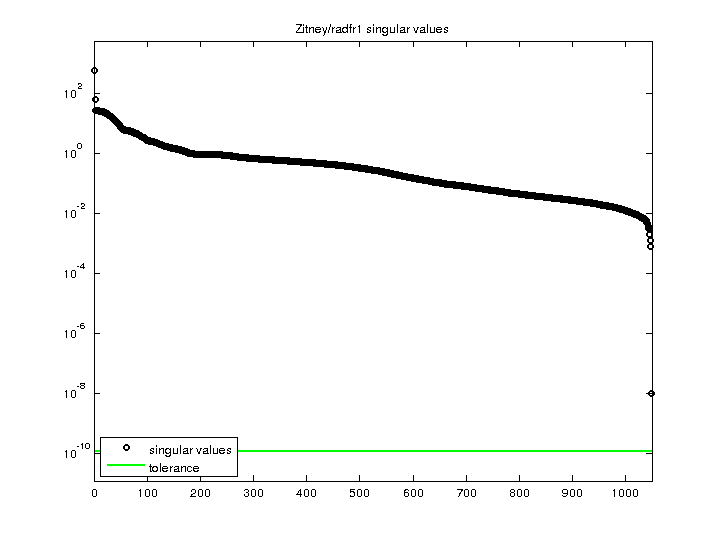

    Zitney/radfr1 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
