Matrix: Zhao/Zhao1

Description: Electromagnetic matrix from A. C. Cangellaris and Li Zhao

Zhao/Zhao1 graph Zhao/Zhao1 graph
(bipartite graph drawing) (graph drawing of A+A')


Zhao/Zhao1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Zhao
  • Click here for a description of the Zhao group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 450 KB. Use UFget(834) or UFget('Zhao/Zhao1') in MATLAB.
  • download in Matrix Market format, file size: 780 KB.
  • download in Rutherford/Boeing format, file size: 589 KB.

    Matrix properties
    number of rows33,861
    number of columns33,861
    nonzeros166,453
    structural full rank?yes
    structural rank33,861
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 92%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorL. Zhao
    editorT. Davis
    date2001
    kindelectromagnetics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,493,262
    Cholesky flop count1.8e+09
    nnz(L+U), no partial pivoting, with AMD6,952,663
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD8,715,465
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD15,859,097

    SVD-based statistics:
    norm(A)2.78277
    min(svd(A))0.00972569
    cond(A)286.126
    rank(A)33,861
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

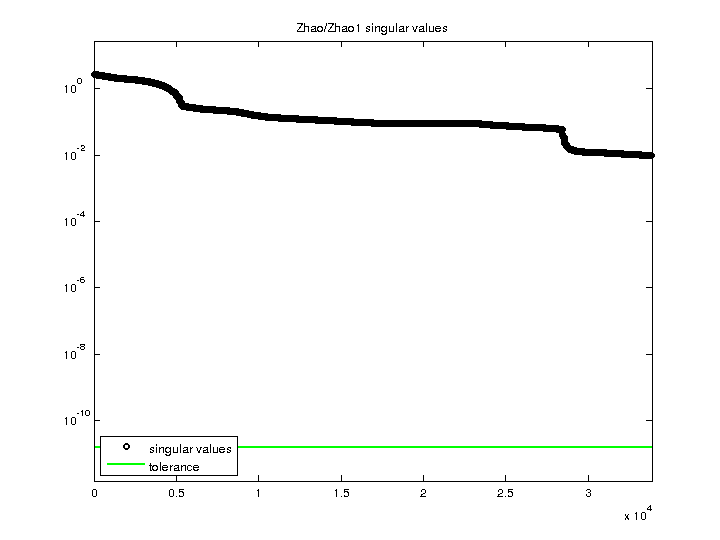

    Zhao/Zhao1 svd

    For a description of the statistics displayed above, click here.
