Matrix: Yoshiyasu/mesh_deform

Description: image mesh deformation problem, Y. Yoshiyasu, Keio Univ, Japan

Yoshiyasu/mesh_deform graph
(bipartite graph drawing)


Yoshiyasu/mesh_deform

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Yoshiyasu
  • Click here for a description of the Yoshiyasu group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 MB. Use UFget(2249) or UFget('Yoshiyasu/mesh_deform') in MATLAB.
  • download in Matrix Market format, file size: 10 MB.
  • download in Rutherford/Boeing format, file size: 9 MB.

    Matrix properties
    number of rows234,023
    number of columns9,393
    nonzeros853,829
    structural full rank?yes
    structural rank9,393
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorY Yoshiyasu
    editorT. Davis
    date2009
    kindcomputer graphics/vision problem
    2D/3D problem?yes

    Additional fieldssize and type
    bfull 234023-by-3
    Dsparse 234023-by-234023

    Notes:

    This problem one is template deformation using the vector field from the
    Yoshiyasu/image_interp problem, solved with v=(A2'*D*A2)/(A2'*D*b2), where
    D is a diagonal matrix containing weights.  Structures of A2 and b2 are a
    little bit more complex than A1 and b1 (in the image_interp problem), but
    they are similar.  Both systems are not very time-consuming themselves, but
    this process iterates more than 10 times for 10 views.  [Note by T. Davis:
    since C is of high rank, update/downdate will not be effective, since it is
    meant for low-rank changes.]


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD199,077,634
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,122,590

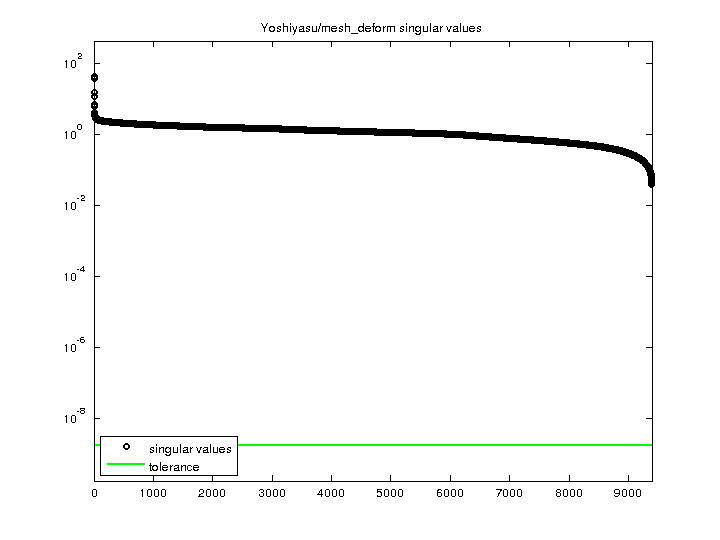

    SVD-based statistics:
    norm(A)44.5338
    min(svd(A))0.0381728
    cond(A)1166.64
    rank(A)9,393
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

    Yoshiyasu/mesh_deform svd

    For a description of the statistics displayed above, click here.
