Matrix: Williams/mac_econ_fwd500

Description: Economics: Macroeconomic model. Williams et al.

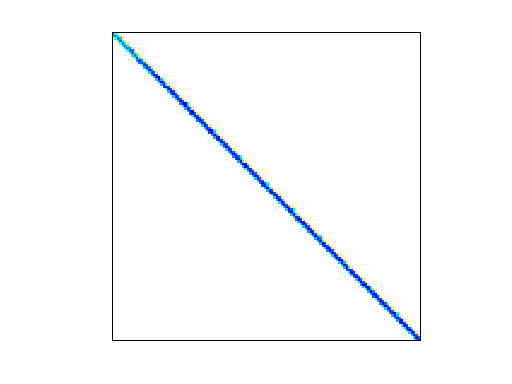

Williams/mac_econ_fwd500 graph Williams/mac_econ_fwd500 graph
(bipartite graph drawing) (graph drawing of A+A')

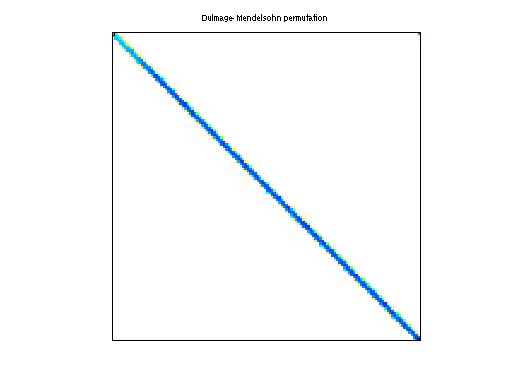

Williams/mac_econ_fwd500 dmperm of Williams/mac_econ_fwd500

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Williams
  • Click here for a description of the Williams group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 9 MB. Use UFget(2376) or UFget('Williams/mac_econ_fwd500') in MATLAB.
  • download in Matrix Market format, file size: 11 MB.
  • download in Rutherford/Boeing format, file size: 11 MB.

    Matrix properties
    number of rows206,500
    number of columns206,500
    nonzeros1,273,389
    structural full rank?yes
    structural rank206,500
    # of blocks from dmperm34
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 6%
    numeric value symmetry 1%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorunknown
    editorS. Williams, L. Oliker, R. Vuduc, J. Shalf, K. Yelick, J. Demmel
    date2008
    kindeconomic problem
    2D/3D problem?no

    Notes:

    Matrices used by S. Williams et al for sparse matrix multiplication on GPUs.

    14 matrices were used in the following paper:

        S. Williams, L. Oliker, R. Vuduc, J. Shalf, K. Yelick, J. Demmel,
        "Optimization of Sparse Matrix-Vector Multiplication on Emerging Multicore
        Platforms", Parallel Computing Volume 35, Issue 3, March 2009, Pages
        178-194.  Special issue on Revolutionary Technologies for Acceleration of
        Emerging Petascale Applications.

        https://hpcrd.lbl.gov/~swwilliams/research/papers/parco08_spmv.pdf
        http://dx.doi.org/10.1016/j.parco.2008.12.006

    This same set of 14 matrices was also used in a subsequent technical report by
    NVIDIA:

        http://www.nvidia.com/object/nvidia_research_pub_001.html "Efficient Sparse
        Matrix-Vector Multiplication on CUDA" Nathan Bell and Michael Garland, in,
        "NVIDIA Technical Report NVR-2008-004", December 2008

    file            Name            dim*    nnz     description

    dense2          Dense           2K      4.0M    dense matrix in sparse format
    pdb1HYS         Protein         36K     4.3M    protein data bank 1HYS
    consph          FEM/Spheres     83K     6.0M    FEM concentric spheres
    cant            FEM/Cantilever  62K     4.0M    FEM cantilever
    pwtk            Wind Tunnel     218K    11.6M   pressurized wind tunnel
    rma10           FEM/Harbor      47K     2.37M   3D CFD of Charleston Harbor
    qcd5_4          QCD             49K     1.90M   quark propagators (QCD/LGT)
    shipsec1        FEM/Ship        141K    3.98M   FEM Ship section / detail
    mac_econ_fwd500 Economics       207K    1.27M   Macroeconomic model
    mc2depi         Epidemiology    526K    2.1M    2D Markov model of epidemic
    cop20k_A        FEM/Accelerator 121K    2.62M   Accelerator cavity design
    scircuit        Circuit         171K    959K    Motorola circuit simulation
    webbase-1M      webbase         1M      3.1M    Web connectivity matrix
    rail4284        LP              4Kx1.1M 11.3M   Railways set cover,
                                                    constraint matrix

    (*) the matrix is square if only one dimension listed.

    Six of the matrices are nearly identical to the matrices already in the
    UF Collection.  They are thus not included in the UF Collection.  See
    the README.txt file for this collection for details.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD41,642,698
    Cholesky flop count2.5e+10
    nnz(L+U), no partial pivoting, with AMD83,078,896
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD49,463,451
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD100,537,008

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
