Matrix: VDOL/tumorAntiAngiogenesis_1

Description: tumorAntiAngiogenesis optimal control problem (matrix 1 of 8)

VDOL/tumorAntiAngiogenesis_1 graph
(undirected graph drawing)


VDOL/tumorAntiAngiogenesis_1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: VDOL
  • Click here for a description of the VDOL group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 43 KB. Use UFget(2748) or UFget('VDOL/tumorAntiAngiogenesis_1') in MATLAB.
  • download in Matrix Market format, file size: 13 KB.
  • download in Rutherford/Boeing format, file size: 12 KB.

    Matrix properties
    number of rows205
    number of columns205
    nonzeros1,783
    structural full rank?yes
    structural rank205
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorB. Senses, A. Rao
    editorT. Davis
    date2015
    kindoptimal control problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 205-by-1
    rownamefull 205-by-79
    mappingfull 205-by-1

    Notes:

    Optimal control problem, Vehicle Dynamics & Optimization Lab, UF
    Anil Rao and Begum Senses, University of Florida
    http://vdol.mae.ufl.edu

    This matrix arises from an optimal control problem described below.
    Each optimal control problem gives rise to a sequence of matrices of
    different sizes when they are being solved inside GPOPS, an optimal
    control solver created by Anil Rao, Begum Senses, and others at in VDOL
    lab at the University of Florida.  This is one of the matrices in one
    of these problems.  The matrix is symmetric indefinite.

    Rao, Senses, and Davis have created a graph coarsening strategy
    that matches pairs of nodes.  The mapping is given for this matrix,
    where map(i)=k means that node i in the original graph is mapped to
    node k in the smaller graph.  map(i)=map(j)=k means that both nodes
    i and j are mapped to the same node k, and thus nodes i and j have
    been merged.

    This matrix consists of a set of nodes (rows/columns) and the
    names of these rows/cols are given

    Anil Rao, Begum Sense, and Tim Davis, 2015.

    VDOL/tumorAntiogenesis

    Tumor anti-angiogenesis optimal control problem is taken from
    Ref.~\cite{ledzewicz2008analysis}. A tumor first uses the blood
    vessels of its host but as the tumor grows oxygen that is carried by
    the blood vessels of its host cannot defuse very far into the tumor.
    Therefore, the tumor grows its own blood vessels by producing
    vascular endothelial growth factor (VEGF). This process is called
    angiogenesis. But blood vessels have a defense mechanism, called
    endostatin, that tries to impede the development of new blood cells
    by targeting VEGF. In addition, new pharmacological therapies that is
    developed for tumor-type cancers also targets VEGF. The goal of the
    tumor anti-angiogenesis problem is to determine the state and control
    that minimizing the size of the tumor at the final time. The state of
    the system is defined by the tumor volume, carrying capacity of a
    vessel, and the total anti-angiogenic treatment administered and the
    control of the system is the angiogenic dose rate.  The specified
    accuracy tolerance of $10^{-7}$ were satisfied after eight mesh
    iterations. As the mesh refinement proceeds, the size of the KKT
    matrices increases from 205 to 490.

    @article{ledzewicz2008analysis,
      title={Analysis of Optimal Controls for a Mathematical Model of
         Tumour Anti-Angiogenesis},
      author={Ledzewicz, Urszula and Sch{\"a}ttler, Heinz},
      journal={Optimal Control Applications and Methods},
      volume=29,
      number=1,
      pages={41--57},
      year=2008,
      publisher={Wiley Online Library}
    }


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD1,546
    Cholesky flop count1.3e+04
    nnz(L+U), no partial pivoting, with AMD2,887
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD4,058
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD20,612

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 04-Jun-2015.

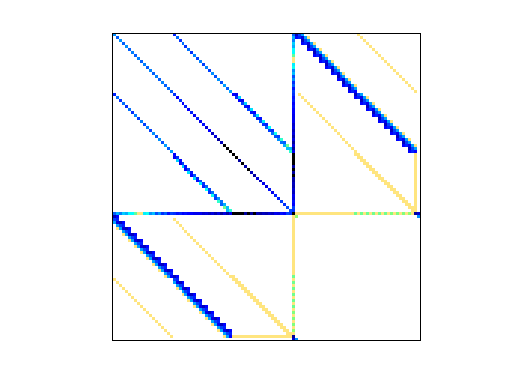

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
