Matrix: VDOL/kineticBatchReactor_5

Description: kineticBatchReactor optimal control problem (matrix 5 of 9)

VDOL/kineticBatchReactor_5 graph
(undirected graph drawing)

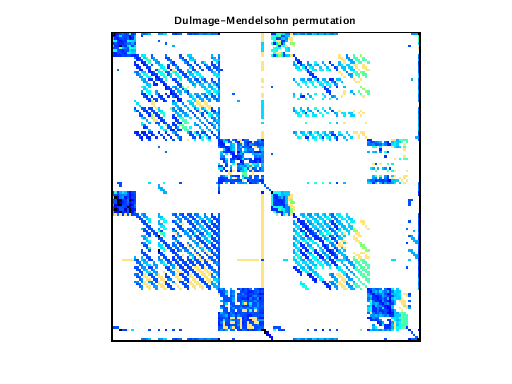

VDOL/kineticBatchReactor_5 dmperm of VDOL/kineticBatchReactor_5
scc of VDOL/kineticBatchReactor_5

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: VDOL
  • Click here for a description of the VDOL group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 673 KB. Use UFget(2700) or UFget('VDOL/kineticBatchReactor_5') in MATLAB.
  • download in Matrix Market format, file size: 574 KB.
  • download in Rutherford/Boeing format, file size: 523 KB.

    Matrix properties
    number of rows7,641
    number of columns7,641
    nonzeros80,767
    structural full rank?yes
    structural rank7,641
    # of blocks from dmperm11
    # strongly connected comp.3
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorB. Senses, A. Rao
    editorT. Davis
    date2015
    kindoptimal control problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 7641-by-1
    rownamefull 7641-by-101
    mappingfull 7641-by-1

    Notes:

    Optimal control problem, Vehicle Dynamics & Optimization Lab, UF
    Anil Rao and Begum Senses, University of Florida
    http://vdol.mae.ufl.edu

    This matrix arises from an optimal control problem described below.
    Each optimal control problem gives rise to a sequence of matrices of
    different sizes when they are being solved inside GPOPS, an optimal
    control solver created by Anil Rao, Begum Senses, and others at in VDOL
    lab at the University of Florida.  This is one of the matrices in one
    of these problems.  The matrix is symmetric indefinite.

    Rao, Senses, and Davis have created a graph coarsening strategy
    that matches pairs of nodes.  The mapping is given for this matrix,
    where map(i)=k means that node i in the original graph is mapped to
    node k in the smaller graph.  map(i)=map(j)=k means that both nodes
    i and j are mapped to the same node k, and thus nodes i and j have
    been merged.

    This matrix consists of a set of nodes (rows/columns) and the
    names of these rows/cols are given

    Anil Rao, Begum Sense, and Tim Davis, 2015.

    VDOL/kineticBatchReactor


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD123,889
    Cholesky flop count2.8e+06
    nnz(L+U), no partial pivoting, with AMD240,137
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD11,141,469
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD16,978,182

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 04-Jun-2015.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
