Matrix: VDOL/goddardRocketProblem_1

Description: goddardRocketProblem optimal control problem (matrix 1 of 2)

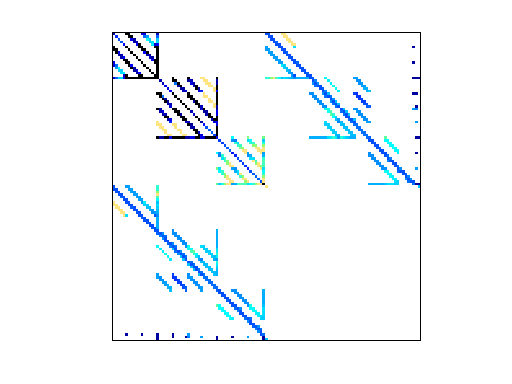

VDOL/goddardRocketProblem_1 graph
(undirected graph drawing)

VDOL/goddardRocketProblem_1 dmperm of VDOL/goddardRocketProblem_1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: VDOL
  • Click here for a description of the VDOL group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 90 KB. Use UFget(2689) or UFget('VDOL/goddardRocketProblem_1') in MATLAB.
  • download in Matrix Market format, file size: 52 KB.
  • download in Rutherford/Boeing format, file size: 46 KB.

    Matrix properties
    number of rows831
    number of columns831
    structural full rank?yes
    structural rank831
    # of blocks from dmperm45
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorB. Senses, A. Rao
    editorT. Davis
    kindoptimal control problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 831-by-1
    rownamefull 831-by-79
    mappingfull 831-by-1


    Optimal control problem, Vehicle Dynamics & Optimization Lab, UF
    Anil Rao and Begum Senses, University of Florida
    This matrix arises from an optimal control problem described below.
    Each optimal control problem gives rise to a sequence of matrices of
    different sizes when they are being solved inside GPOPS, an optimal
    control solver created by Anil Rao, Begum Senses, and others at in VDOL
    lab at the University of Florida.  This is one of the matrices in one
    of these problems.  The matrix is symmetric indefinite.
    Rao, Senses, and Davis have created a graph coarsening strategy
    that matches pairs of nodes.  The mapping is given for this matrix,
    where map(i)=k means that node i in the original graph is mapped to
    node k in the smaller graph.  map(i)=map(j)=k means that both nodes
    i and j are mapped to the same node k, and thus nodes i and j have
    been merged.
    This matrix consists of a set of nodes (rows/columns) and the
    names of these rows/cols are given
    Anil Rao, Begum Sense, and Tim Davis, 2015.
    Goddard rocket maximum ascent optimal control problem is taken from
    Ref.~\cite{goddard1920method}. The goal of the Goddard rocket maximum
    ascent problem is to determine the state and the control that
    maximize the final altitude of an ascending rocket. The state of the
    system is defined by the altitude, velocity, and the mass of the
    rocket and the control of the system is the thrust. The Goddard
    rocket problem contains a singular arc where the continuous-time
    optimality conditions are indeterminate, thereby the nonlinear
    programming problem solver will have difficulty determining the
    optimal control during the singular arc. In order to prevent this
    difficulty and obtain more accurate solutions the Goddard rocket
    problem is posed as a three-phase optimal control problem. Phase one
    and phase three contains the same dynamics and the path constraints
    as the original problem, while phase two contains an additional path
    constraint and an event constraint. The specified accuracy tolerance
    of $10^{-8}$ were satisfied after two mesh iterations. As the mesh
    refinement proceeds, the size of the KKT matrices increases from 831
    to 867.
      title={A Method of Reaching Extreme Altitudes.},
      author={Goddard, Robert H},

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD7,728
    Cholesky flop count7.9e+04
    nnz(L+U), no partial pivoting, with AMD14,625
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD59,030
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD98,397

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 04-Jun-2015.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
