Matrix: TSOPF/TSOPF_RS_b300_c2

Description: transient optimal power flow, Reduced-Space. Guangchao Geng, Zhejiang Univ

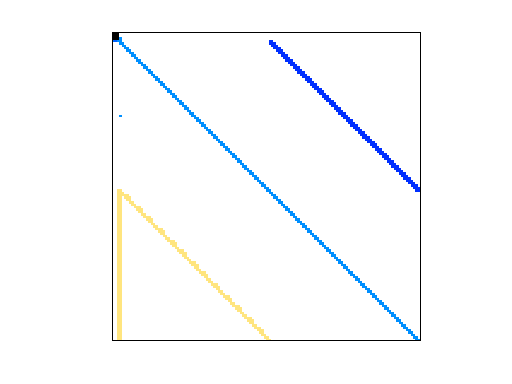

TSOPF/TSOPF_RS_b300_c2 graph TSOPF/TSOPF_RS_b300_c2 graph
(bipartite graph drawing) (graph drawing of A+A')


TSOPF/TSOPF_RS_b300_c2 dmperm of TSOPF/TSOPF_RS_b300_c2

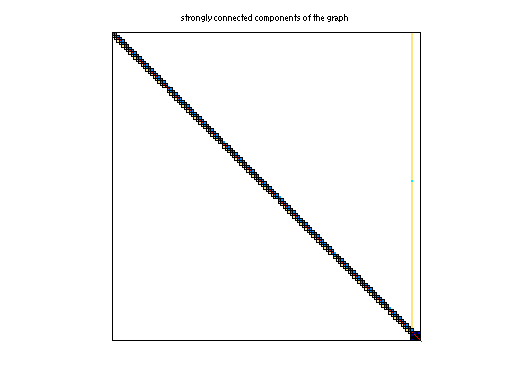

scc of TSOPF/TSOPF_RS_b300_c2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: TSOPF
  • Click here for a description of the TSOPF group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 10 MB. Use UFget(2238) or UFget('TSOPF/TSOPF_RS_b300_c2') in MATLAB.
  • download in Matrix Market format, file size: 22 MB.
  • download in Rutherford/Boeing format, file size: 13 MB.

    Matrix properties
    number of rows28,338
    number of columns28,338
    nonzeros2,943,887
    structural full rank?yes
    structural rank28,338
    # of blocks from dmperm271
    # strongly connected comp.270
    explicit zero entries0
    nonzero pattern symmetry 1%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorG. Geng
    editorT. Davis
    date2009
    kindpower network problem
    2D/3D problem?no

    Additional fieldssize and type
    bsparse 28338-by-137

    Notes:

    Transient stability-constrained optimal power flow (TSOPF) problems from
    Guangchao Geng, Institute of Power System, College of Electrical Engineering,
    Zhejiang University, Hangzhou, 310027, China.  (genggc AT gmail DOT com).
    Matrices in the  Full-Space (FS) group are symmetric indefinite, and are best
    solved with MA57.  Matrices in the the Reduced-Space (RS) group are best
    solved with KLU, which for these matrices can be 10 times faster than UMFPACK
    or SuperLU.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD6,950,897
    Cholesky flop count1.9e+09
    nnz(L+U), no partial pivoting, with AMD13,873,456
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD897,891
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD7,276,541

    SVD-based statistics:
    norm(A)4090.72
    min(svd(A))3.94061e-05
    cond(A)1.03809e+08
    rank(A)28,338
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    TSOPF/TSOPF_RS_b300_c2 svd
