Matrix: TSOPF/TSOPF_FS_b300_c3

Description: transient optimal power flow, Full-Space. Guangchao Geng, Zhejiang Univ

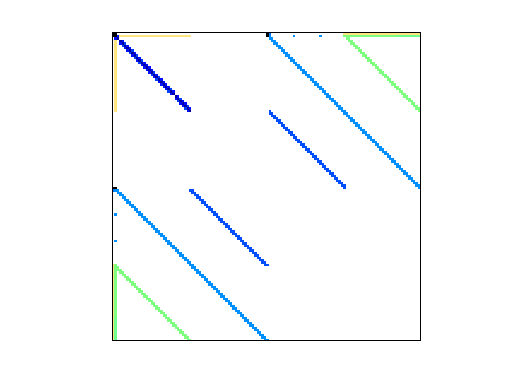

TSOPF/TSOPF_FS_b300_c3 graph
(undirected graph drawing)

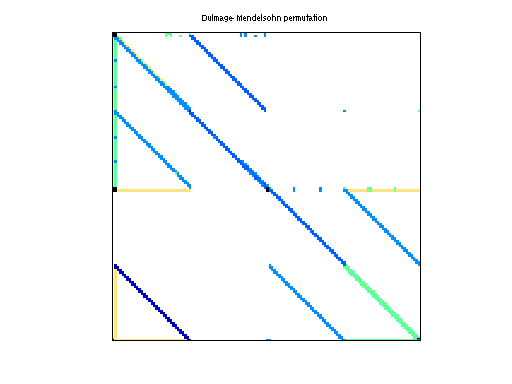

TSOPF/TSOPF_FS_b300_c3 dmperm of TSOPF/TSOPF_FS_b300_c3
scc of TSOPF/TSOPF_FS_b300_c3

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: TSOPF
  • Click here for a description of the TSOPF group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 58 MB. Use UFget(2226) or UFget('TSOPF/TSOPF_FS_b300_c3') in MATLAB.
  • download in Matrix Market format, file size: 45 MB.
  • download in Rutherford/Boeing format, file size: 28 MB.

    Matrix properties
    number of rows84,414
    number of columns84,414
    nonzeros13,135,930
    structural full rank?yes
    structural rank84,414
    # of blocks from dmperm2
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorG. Geng
    editorT. Davis
    date2009
    kindpower network problem
    2D/3D problem?no

    Additional fieldssize and type
    bsparse 84414-by-1

    Notes:

    Transient stability-constrained optimal power flow (TSOPF) problems from
    Guangchao Geng, Institute of Power System, College of Electrical Engineering,
    Zhejiang University, Hangzhou, 310027, China.  (genggc AT gmail DOT com).
    Matrices in the  Full-Space (FS) group are symmetric indefinite, and are best
    solved with MA57.  Matrices in the the Reduced-Space (RS) group are best
    solved with KLU, which for these matrices can be 10 times faster than UMFPACK
    or SuperLU.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD156,764,823
    Cholesky flop count7.7e+11
    nnz(L+U), no partial pivoting, with AMD313,445,232
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD710,269,399
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,124,524,578

    For a description of the statistics displayed above, click here.
