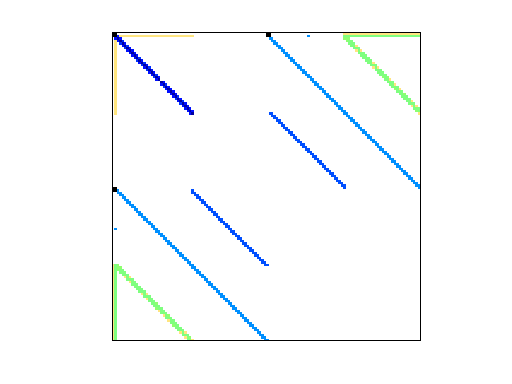

Matrix: TSOPF/TSOPF_FS_b300_c2

Description: transient optimal power flow, Full-Space. Guangchao Geng, Zhejiang Univ

TSOPF/TSOPF_FS_b300_c2 graph
(undirected graph drawing)

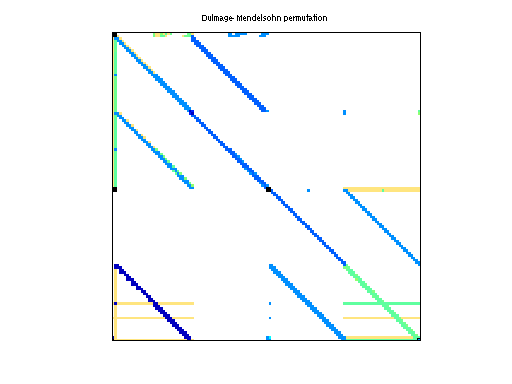

TSOPF/TSOPF_FS_b300_c2 dmperm of TSOPF/TSOPF_FS_b300_c2

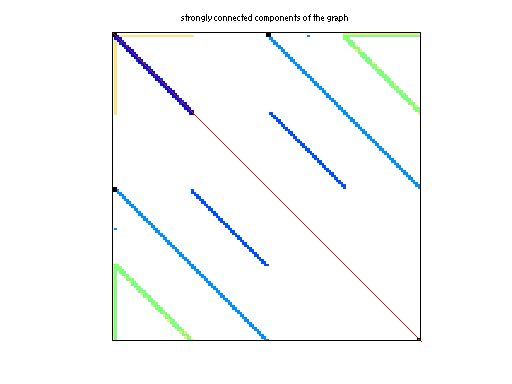

scc of TSOPF/TSOPF_FS_b300_c2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: TSOPF
  • Click here for a description of the TSOPF group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 38 MB. Use UFget(2225) or UFget('TSOPF/TSOPF_FS_b300_c2') in MATLAB.
  • download in Matrix Market format, file size: 30 MB.
  • download in Rutherford/Boeing format, file size: 19 MB.

    Matrix properties
    number of rows56,814
    number of columns56,814
    structural full rank?yes
    structural rank56,814
    # of blocks from dmperm2
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorG. Geng
    editorT. Davis
    kindpower network problem
    2D/3D problem?no

    Additional fieldssize and type
    bsparse 56814-by-1


    Transient stability-constrained optimal power flow (TSOPF) problems from
    Guangchao Geng, Institute of Power System, College of Electrical Engineering,
    Zhejiang University, Hangzhou, 310027, China.  (genggc AT gmail DOT com).
    Matrices in the  Full-Space (FS) group are symmetric indefinite, and are best
    solved with MA57.  Matrices in the the Reduced-Space (RS) group are best
    solved with KLU, which for these matrices can be 10 times faster than UMFPACK
    or SuperLU.

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD114,302,115
    Cholesky flop count6.5e+11
    nnz(L+U), no partial pivoting, with AMD228,547,416
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD229,799,062
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD446,946,341

    For a description of the statistics displayed above, click here.
