Matrix: Szczerba/Ill_Stokes

Description: Ill-conditioned matrix from a Stokes problem, by Dominick Szczerba

Szczerba/Ill_Stokes graph Szczerba/Ill_Stokes graph
(bipartite graph drawing) (graph drawing of A+A')

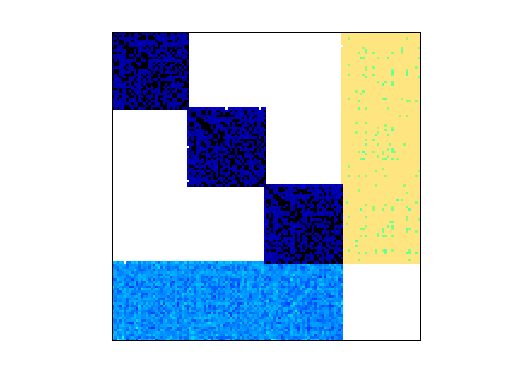

Szczerba/Ill_Stokes

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Szczerba
  • Click here for a description of the Szczerba group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(1862) or UFget('Szczerba/Ill_Stokes') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows20,896
    number of columns20,896
    nonzeros191,368
    structural full rank?yes
    structural rank20,896
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 99%
    numeric value symmetry 33%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorD. Szczerba
    editorT. Davis
    date2007
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Additional fieldssize and type
    bfull 20896-by-1

    Notes:

    The matrix comes from a global formulation of the Stokes problem posed
    directly (without pressure correction) on an unstructured tet mesh.  It
    includes momentum equations (3 quadrants) and continuity equation (last
    quadrant).  Unknowns are organized as : vx, vy, vz, p. The last quadrant
    does not contain diagonal entries of course (continuity eq. does not
    contain pressure) and is the reason bicgstab and related methods do not
    work.  Does not invert nicely with umfpack (strong oscillations in the
    4th quadrant of the solution). LSQR produces better results (smaller
    oscillations) but takes ages. Dominik Szczerba, Ph.D. Computer Vision
    Lab, ETH. CH-8092 Zurich. http://www.vision.ee.ethz.ch/~domi


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,280,425
    Cholesky flop count2.1e+09
    nnz(L+U), no partial pivoting, with AMD6,539,954
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD7,800,780
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD13,814,174

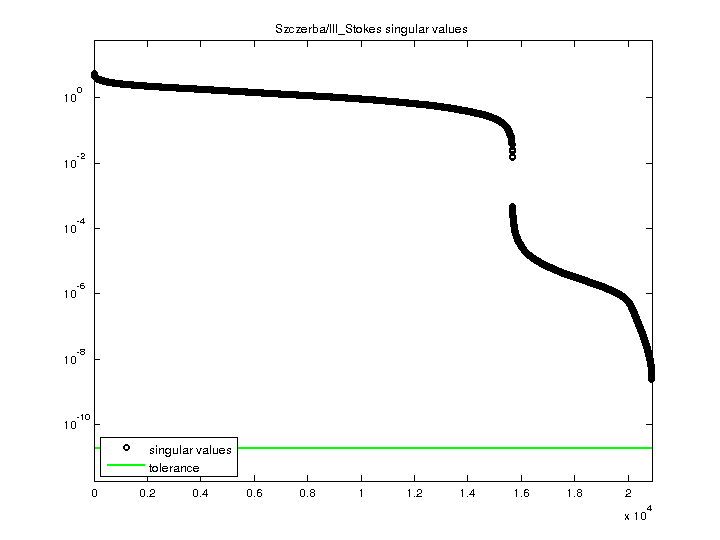

    SVD-based statistics:
    norm(A)5.44287
    min(svd(A))2.41594e-09
    cond(A)2.25289e+09
    rank(A)20,896
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

    Szczerba/Ill_Stokes svd

    For a description of the statistics displayed above, click here.
