Matrix: Shen/shermanACb

Description: From Kai Shen, UCSB (now at kshen@cs.rochester.edu)

Shen/shermanACb graph Shen/shermanACb graph
(bipartite graph drawing) (graph drawing of A+A')

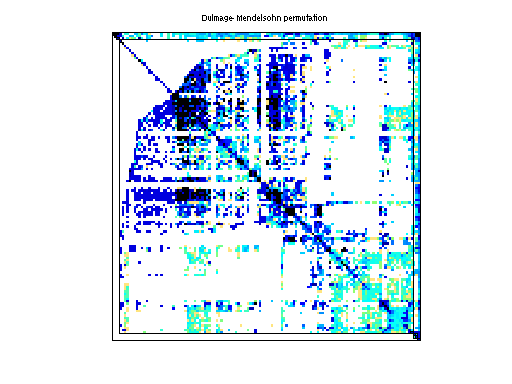

Shen/shermanACb dmperm of Shen/shermanACb

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Shen
  • Click here for a description of the Shen group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 700 KB. Use UFget(901) or UFget('Shen/shermanACb') in MATLAB.
  • download in Matrix Market format, file size: 756 KB.
  • download in Rutherford/Boeing format, file size: 625 KB.

    Matrix properties
    number of rows18,510
    number of columns18,510
    nonzeros145,149
    structural full rank?yes
    structural rank18,510
    # of blocks from dmperm851
    # strongly connected comp.851
    explicit zero entries0
    nonzero pattern symmetry 15%
    numeric value symmetry 3%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorK. Shen
    editorT. Davis
    date2003
    kind2D/3D problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD411,269
    Cholesky flop count4.2e+07
    nnz(L+U), no partial pivoting, with AMD804,028
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD31,277,009
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD112,482,360

    SVD-based statistics:
    norm(A)1100
    min(svd(A))6.12696e-05
    cond(A)1.79535e+07
    rank(A)18,510
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

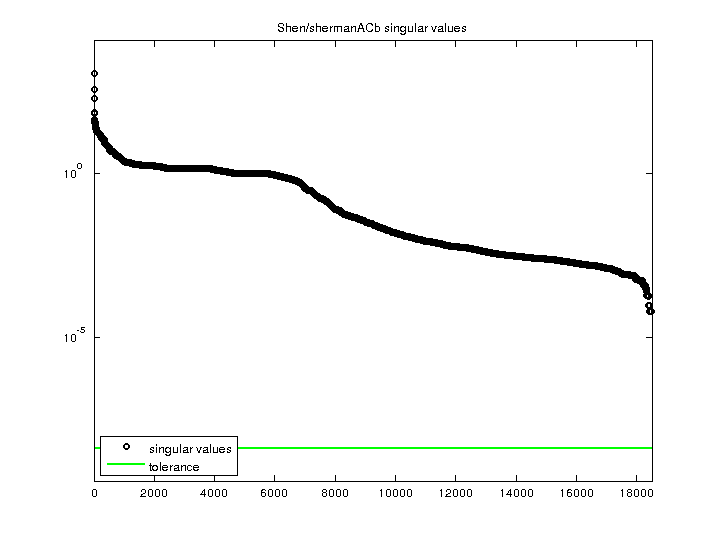

    Shen/shermanACb svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
