Matrix: Shen/shermanACa

Description: From Kai Shen, UCSB (now at

Shen/shermanACa graph Shen/shermanACa graph
(bipartite graph drawing) (graph drawing of A+A')

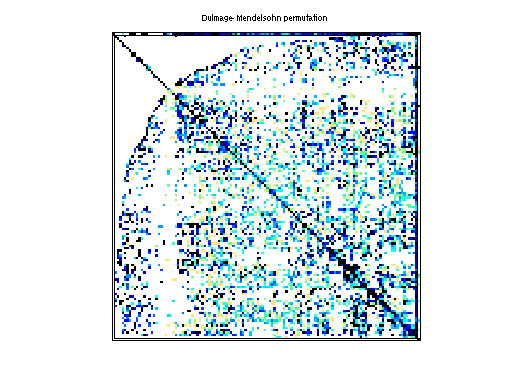

Shen/shermanACa dmperm of Shen/shermanACa

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Shen
  • Click here for a description of the Shen group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 194 KB. Use UFget(900) or UFget('Shen/shermanACa') in MATLAB.
  • download in Matrix Market format, file size: 165 KB.
  • download in Rutherford/Boeing format, file size: 145 KB.

    Matrix properties
    number of rows3,432
    number of columns3,432
    structural full rank?yes
    structural rank3,432
    # of blocks from dmperm59
    # strongly connected comp.59
    explicit zero entries0
    nonzero pattern symmetry 16%
    numeric value symmetry 2%
    Cholesky candidate?no
    positive definite?no

    authorK. Shen
    editorT. Davis
    kind2D/3D problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD95,384
    Cholesky flop count9.3e+06
    nnz(L+U), no partial pivoting, with AMD187,336
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,758,445
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,933,872

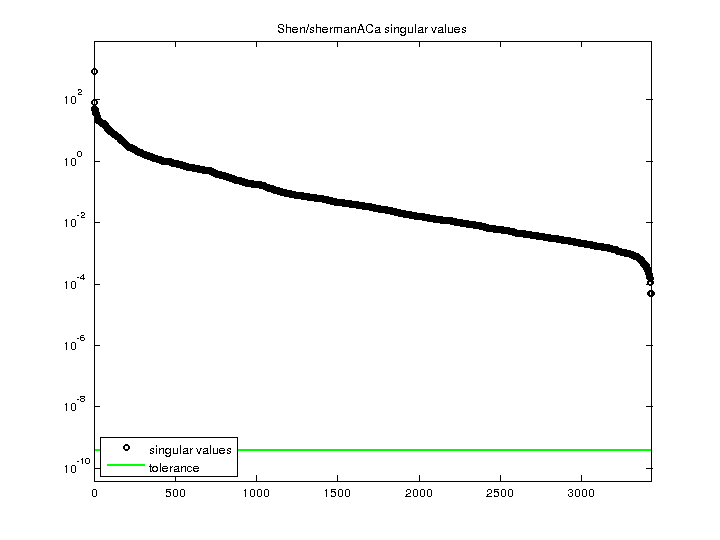

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

    Shen/shermanACa svd

    For a description of the statistics displayed above, click here.
