Matrix: Schulthess/N_pid

Description: biochemical network; left nullspace is required

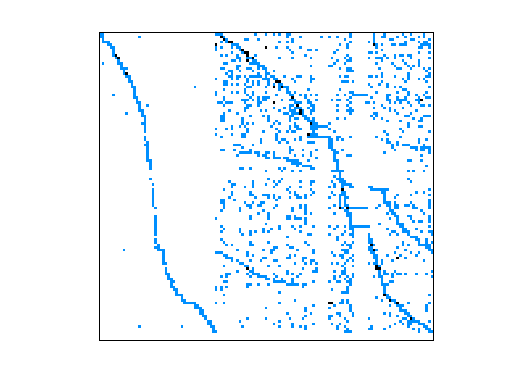

Schulthess/N_pid graph
(bipartite graph drawing)

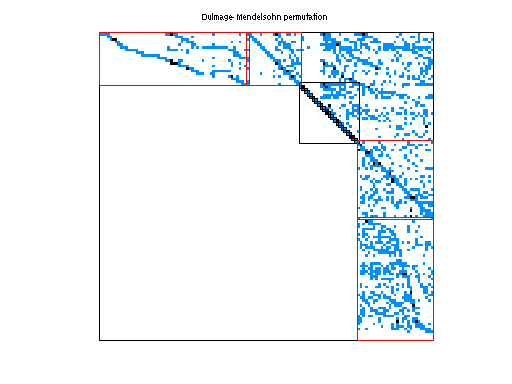

Schulthess/N_pid dmperm of Schulthess/N_pid

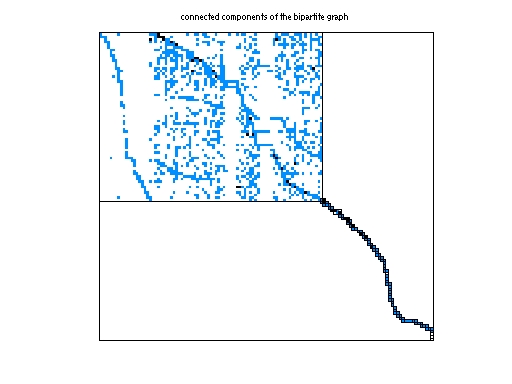

scc of Schulthess/N_pid

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schulthess
  • Click here for a description of the Schulthess group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 19 KB. Use UFget(2553) or UFget('Schulthess/N_pid') in MATLAB.
  • download in Matrix Market format, file size: 29 KB.
  • download in Rutherford/Boeing format, file size: 25 KB.

    Matrix properties
    number of rows3,625
    number of columns3,923
    nonzeros8,054
    structural full rank?no
    structural rank2,171
    # of blocks from dmperm640
    # strongly connected comp.1,216
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorP. Schulthess
    editorT. Davis
    date2012
    kindbiochemical network
    2D/3D problem?no

    Notes:

    Matrices from Pascal Schulthess, Institute for Pathology,
    Chariteplatz 1, 10117 Berlin, Germany.

    Three large biochemical networks (N_biocarta, N_pid, and N_reactome).
    These are stoichiometric matrices extracted from three biochemical
    databases (BioCarta, PID, and REACTOME) describing cell signaling
    pathways and protein-protein interaction networks.  The goal is to
    find the left nullspace of the matrix; in MATLAB notation:

    N = null (Problem.A') ;

    The matrix (Problem.A')*N will thus be essentially zero.
    This can be done much more efficiently with the spqr_rank toolbox by
    Leslie Foster and Tim Davis, as:

    N = spqr_null (Problem.A') ;

    Results:
    The matrix A is transposed, then N = null (A) or N = spqr_null (A)
    is computed.  The size statistic is the memory taken by N.
    spqr_null can compute either an explicit matrix N, or an implicit
    Householder-based representation.  The latter takes less memory.

    Matrix: N_biocarta  size: 1996 by 1922 (transposed)

    spqr_null stats:
                           flag: 0
                           rank: 1023
                            tol: 3.5456e-12
          est_sval_upper_bounds: [0.1689 3.4534e-15]
          est_sval_lower_bounds: [0.1203 0]
        sval_numbers_for_bounds: [1023 1024]
             est_norm_A_times_N: 2.4349e-15

    spqr_null, implicit:  0.03 sec, norm(A*N)  9e-15 size:  0.08 MB
    spqr_null, explicit:  0.10 sec, norm(A*N)  9e-15 size:  0.11 MB
    MATLAB null:          3.31 sec, norm(A*N)  2e-13 size: 13.82 MB
    all report dim(N) of 899.

    Matrix: N_pid  size: 3923 by 3625 (transposed)

    spqr_null stats:
                           flag: 0
                           rank: 2048
                            tol: 1.3937e-11
          est_sval_upper_bounds: [0.0922 5.1310e-15]
          est_sval_lower_bounds: [0.0585 0]
        sval_numbers_for_bounds: [2048 2049]
             est_norm_A_times_N: 1.6751e-15

    spqr_null, implicit:  0.05 sec, norm(A*N)  4e-14 size:  0.21 MB
    spqr_null, explicit:  0.34 sec, norm(A*N)  4e-14 size:  1.32 MB
    MATLAB null:         24.86 sec, norm(A*N)  9e-13 size: 45.73 MB
    all report dim(N) of 1577

    Matrix: N_reactome  size: 16559 by 10204 (transposed)

    spqr_null stats:
                           flag: 0
                           rank: 9025
                            tol: 1.1766e-10
          est_sval_upper_bounds: [0.6722 1.3042e-14]
          est_sval_lower_bounds: [0.0106 0]
        sval_numbers_for_bounds: [9025 9026]
             est_norm_A_times_N: 9.4695e-15

    spqr_null, implicit: 0.95 sec, norm(A*N)  2e-13 size:  7.5 MB
    spqr_null, explicit: 3.53 sec, norm(A*N)  2e-13 size: 25.2 MB
    MATLAB null:       904.54 sec, norm(A*N)  2e-10 size: 96.2 MB
    all report dim(N) of 1179.


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD46,046
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD9,594

    SVD-based statistics:
    norm(A)20.4905
    min(svd(A))0
    cond(A)Inf
    rank(A)2,048
    sprank(A)-rank(A)123
    null space dimension1,577
    full numerical rank?no
    singular value gap4.16923e+13

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

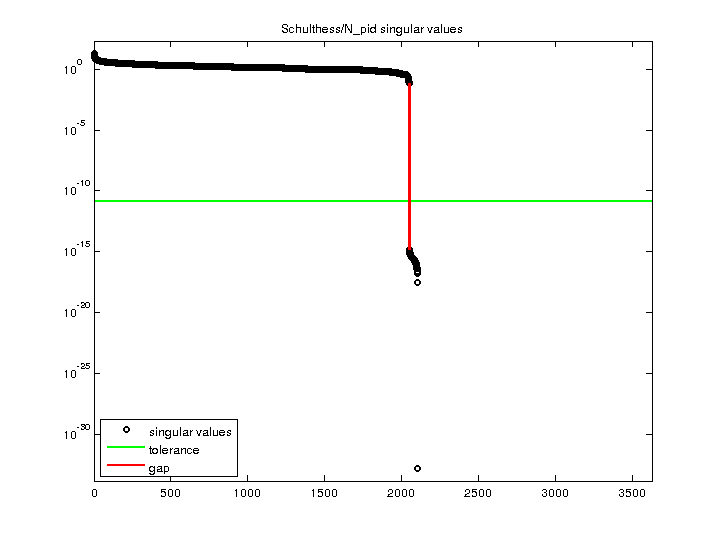

    Schulthess/N_pid svd
