Matrix properties
number of rows	57,975
number of columns	57,975
nonzeros	530,583
structural full rank?	yes
structural rank	57,975

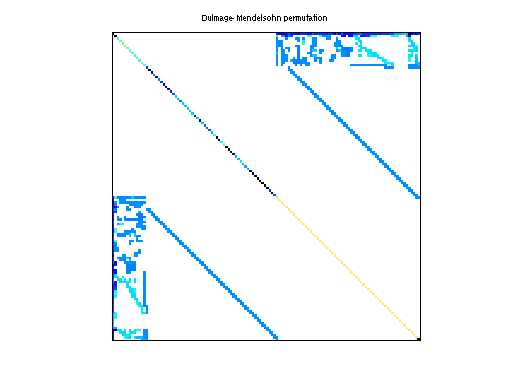

# of blocks from dmperm	165
# strongly connected comp.	165
explicit zero entries	1,352
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	IBM
editor	O. Schenk
date	2006
kind	subsequent optimization problem
2D/3D problem?	no

Additional fields	size and type
b	full 57975-by-1

Notes:

next: - first: Schenk_IBMNA/c-67
An earlier version (Oct. 2003) of this matrix was obtained from Olaf
Schenk, and appears here as Schenk_IBMNA/c-67.  However, it differs
from the version posted on his web site as of Nov. 2006.   The new
version appears here as Schenk_IBMNA/c-67b.   The two matrices are very
similar, but not identical.

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	441,401
Cholesky flop count	1.0e+07
nnz(L+U), no partial pivoting, with AMD	824,827
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	28,894,835
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	46,391,127

Note that all matrix statistics (except nonzero pattern symmetry) exclude the 1352 explicit zero entries.

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

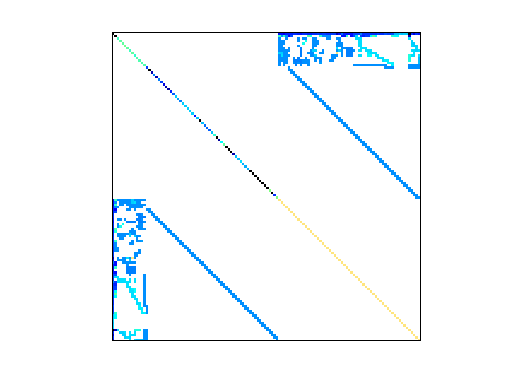

Matrix pictures by cspy, a MATLAB function in the CSparse package.
