Matrix: Schenk_IBMNA/c-42

Description: IBM TJ Watson, non-linear optimization

Schenk_IBMNA/c-42 graph
(undirected graph drawing)

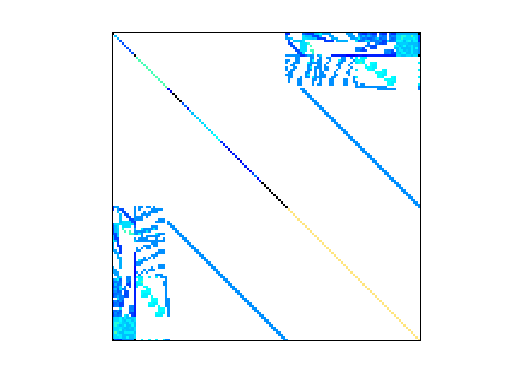

Schenk_IBMNA/c-42

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schenk_IBMNA
  • Click here for a description of the Schenk_IBMNA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 582 KB. Use UFget(1561) or UFget('Schenk_IBMNA/c-42') in MATLAB.
  • download in Matrix Market format, file size: 499 KB.
  • download in Rutherford/Boeing format, file size: 457 KB.

    Matrix properties
    number of rows10,471
    number of columns10,471
    nonzeros110,285
    structural full rank?yes
    structural rank10,471
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorIBM
    editorO. Schenk
    date2006
    kindoptimization problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 10471-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD104,470
    Cholesky flop count2.3e+06
    nnz(L+U), no partial pivoting, with AMD198,469
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD4,752,717
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD6,947,690

    SVD-based statistics:
    norm(A)40485.2
    min(svd(A))0.00231398
    cond(A)1.7496e+07
    rank(A)10,471
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

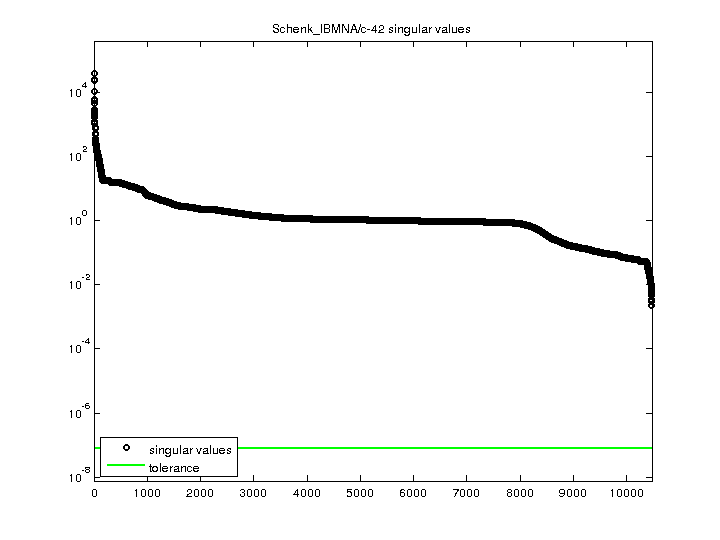

    Schenk_IBMNA/c-42 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
