Matrix: Schenk_IBMNA/c-37

Description: IBM TJ Watson, non-linear optimization

Schenk_IBMNA/c-37 graph
(undirected graph drawing)

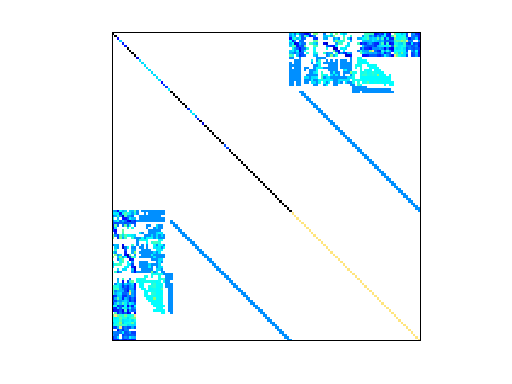

Schenk_IBMNA/c-37

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schenk_IBMNA
  • Click here for a description of the Schenk_IBMNA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 395 KB. Use UFget(1556) or UFget('Schenk_IBMNA/c-37') in MATLAB.
  • download in Matrix Market format, file size: 336 KB.
  • download in Rutherford/Boeing format, file size: 301 KB.

    Matrix properties
    number of rows8,204
    number of columns8,204
    nonzeros74,676
    structural full rank?yes
    structural rank8,204
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorIBM
    editorO. Schenk
    date2006
    kindoptimization problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 8204-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD140,490
    Cholesky flop count1.5e+07
    nnz(L+U), no partial pivoting, with AMD272,776
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD871,667
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,522,893

    SVD-based statistics:
    norm(A)44089.6
    min(svd(A))0.000697379
    cond(A)6.32218e+07
    rank(A)8,204
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

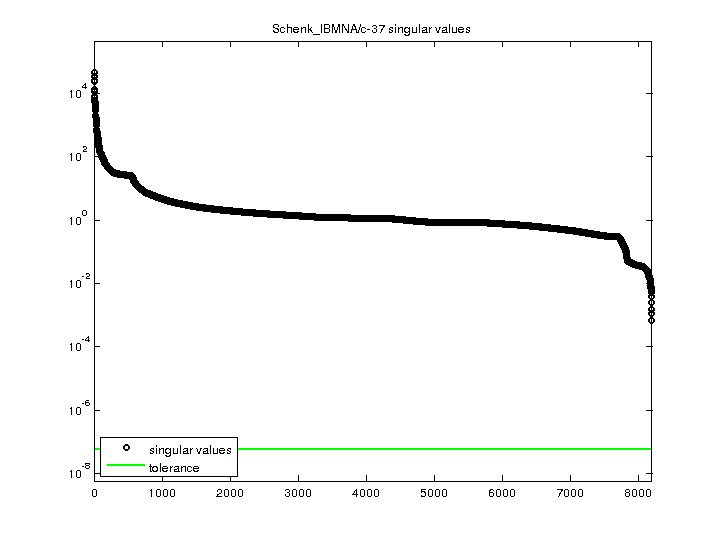

    Schenk_IBMNA/c-37 svd

    For a description of the statistics displayed above, click here.
