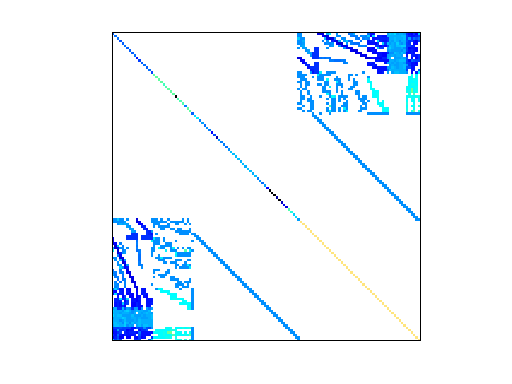

Matrix: Schenk_IBMNA/c-34

Description: IBM TJ Watson, non-linear optimization

Schenk_IBMNA/c-34 graph
(undirected graph drawing)


Schenk_IBMNA/c-34

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schenk_IBMNA
  • Click here for a description of the Schenk_IBMNA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 341 KB. Use UFget(1553) or UFget('Schenk_IBMNA/c-34') in MATLAB.
  • download in Matrix Market format, file size: 298 KB.
  • download in Rutherford/Boeing format, file size: 271 KB.

    Matrix properties
    number of rows6,611
    number of columns6,611
    nonzeros64,333
    structural full rank?yes
    structural rank6,611
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorIBM
    editorO. Schenk
    date2006
    kindoptimization problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 6611-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD80,391
    Cholesky flop count2.2e+06
    nnz(L+U), no partial pivoting, with AMD154,171
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,604,165
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,093,661

    SVD-based statistics:
    norm(A)1730.87
    min(svd(A))0.0183119
    cond(A)94521.5
    rank(A)6,611
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

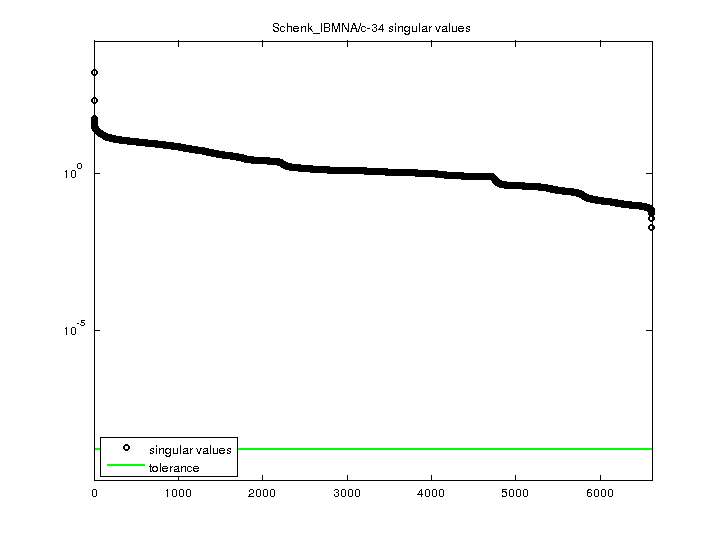

    Schenk_IBMNA/c-34 svd

    For a description of the statistics displayed above, click here.
