Matrix: Schenk_IBMNA/c-19

Description: IBM TJ Watson, non-linear optimization

Schenk_IBMNA/c-19 graph
(undirected graph drawing)

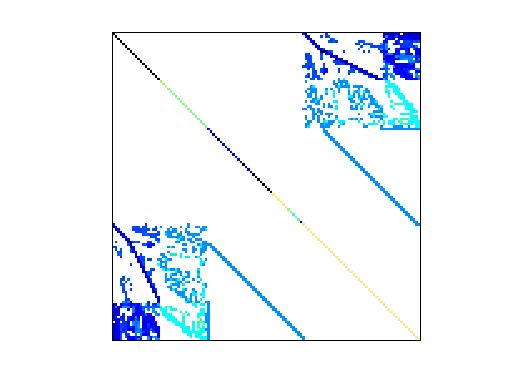

Schenk_IBMNA/c-19

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schenk_IBMNA
  • Click here for a description of the Schenk_IBMNA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 137 KB. Use UFget(1538) or UFget('Schenk_IBMNA/c-19') in MATLAB.
  • download in Matrix Market format, file size: 113 KB.
  • download in Rutherford/Boeing format, file size: 103 KB.

    Matrix properties
    number of rows2,327
    number of columns2,327
    nonzeros21,817
    structural full rank?yes
    structural rank2,327
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorIBM
    editorO. Schenk
    date2006
    kindoptimization problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 2327-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD43,753
    Cholesky flop count2.8e+06
    nnz(L+U), no partial pivoting, with AMD85,179
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD196,225
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD349,697

    SVD-based statistics:
    norm(A)18435.7
    min(svd(A))0.0271676
    cond(A)678593
    rank(A)2,327
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

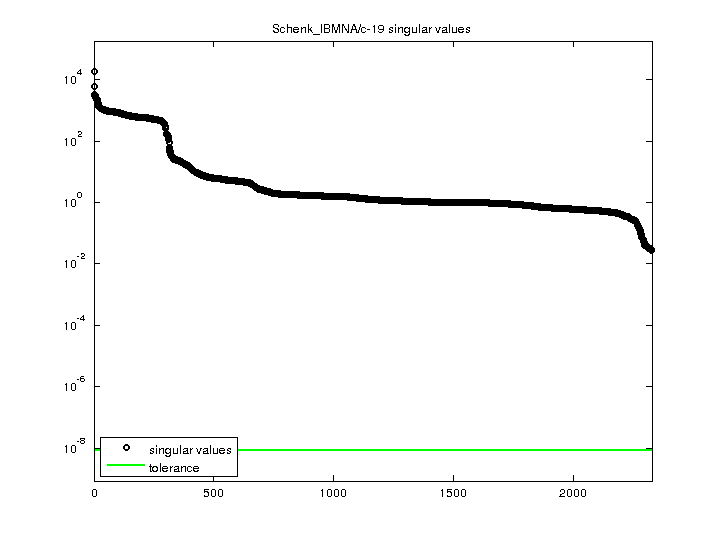

    Schenk_IBMNA/c-19 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
