Matrix: Sandia/oscil_dcop_34

Description: Sandia/oscil_dcop_34 circuit simulation matrix. Sandia National Lab.

Sandia/oscil_dcop_34 graph Sandia/oscil_dcop_34 graph
(bipartite graph drawing) (graph drawing of A+A')

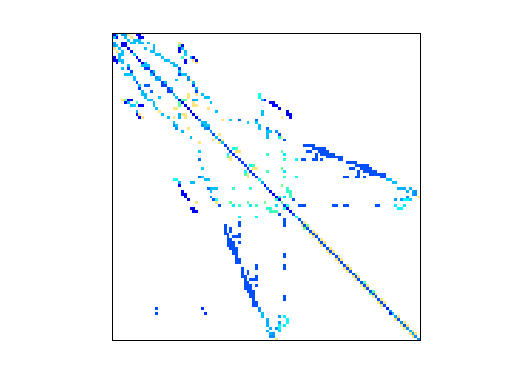

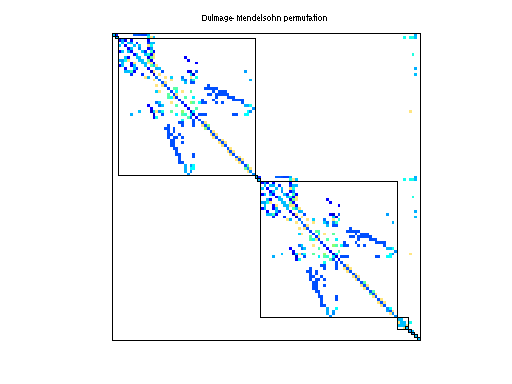

Sandia/oscil_dcop_34 dmperm of Sandia/oscil_dcop_34

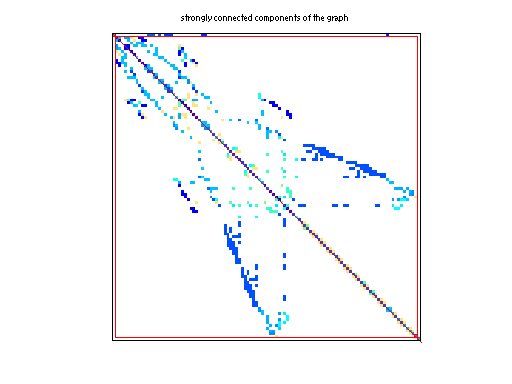

scc of Sandia/oscil_dcop_34

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Sandia
  • Click here for a description of the Sandia group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 10 KB. Use UFget(1145) or UFget('Sandia/oscil_dcop_34') in MATLAB.
  • download in Matrix Market format, file size: 15 KB.
  • download in Rutherford/Boeing format, file size: 14 KB.

    Matrix properties
    number of rows430
    number of columns430
    nonzeros1,544
    structural full rank?yes
    structural rank430
    # of blocks from dmperm31
    # strongly connected comp.9
    explicit zero entries0
    nonzero pattern symmetry 98%
    numeric value symmetry 70%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorR. Hoekstra
    editorT. Davis
    date2003
    kindsubsequent circuit simulation problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 430-by-1

    Notes:

    next: Sandia/oscil_dcop_35 first: Sandia/oscil_dcop_01


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD1,439
    Cholesky flop count5.2e+03
    nnz(L+U), no partial pivoting, with AMD2,448
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,830
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,504

    SVD-based statistics:
    norm(A)2.001e+06
    min(svd(A))6.86277e-12
    cond(A)2.91574e+17
    rank(A)420
    sprank(A)-rank(A)10
    null space dimension10
    full numerical rank?no
    singular value gap1.31704

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

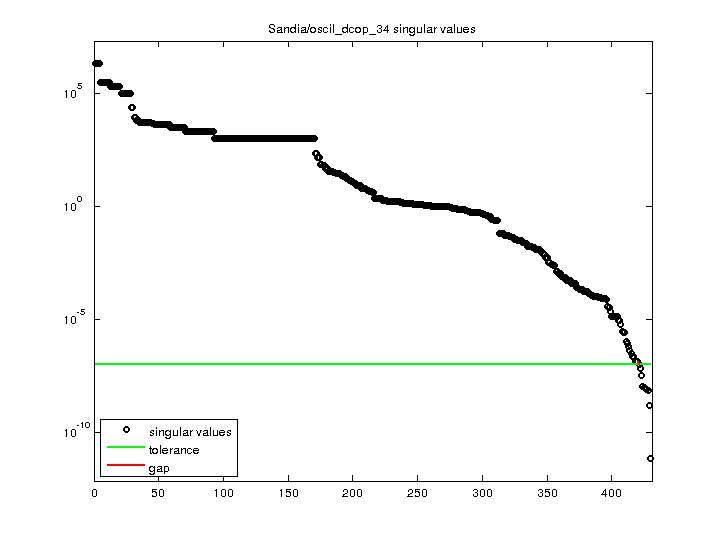

    Sandia/oscil_dcop_34 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
