Matrix: Sandia/adder_dcop_61

Description: Sandia/adder_dcop_61 circuit simulation matrix. Sandia National Lab.

Sandia/adder_dcop_61 graph Sandia/adder_dcop_61 graph
(bipartite graph drawing) (graph drawing of A+A')

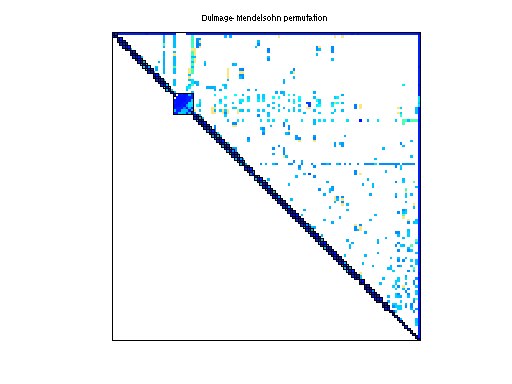

Sandia/adder_dcop_61 dmperm of Sandia/adder_dcop_61
scc of Sandia/adder_dcop_61

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Sandia
  • Click here for a description of the Sandia group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 64 KB. Use UFget(1044) or UFget('Sandia/adder_dcop_61') in MATLAB.
  • download in Matrix Market format, file size: 81 KB.
  • download in Rutherford/Boeing format, file size: 67 KB.

    Matrix properties
    number of rows1,813
    number of columns1,813
    nonzeros11,246
    structural full rank?yes
    structural rank1,813
    # of blocks from dmperm469
    # strongly connected comp.6
    explicit zero entries0
    nonzero pattern symmetry 65%
    numeric value symmetry 1%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorR. Hoekstra
    editorT. Davis
    date2003
    kindsubsequent circuit simulation problem
    2D/3D problem?no

    Notes:

    next: Sandia/adder_dcop_62 first: Sandia/init_adder1


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD12,432
    Cholesky flop count1.0e+05
    nnz(L+U), no partial pivoting, with AMD23,051
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD223,543
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD992,206

    SVD-based statistics:
    norm(A)1.1743
    min(svd(A))2.09297e-12
    cond(A)5.61069e+11
    rank(A)1,813
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

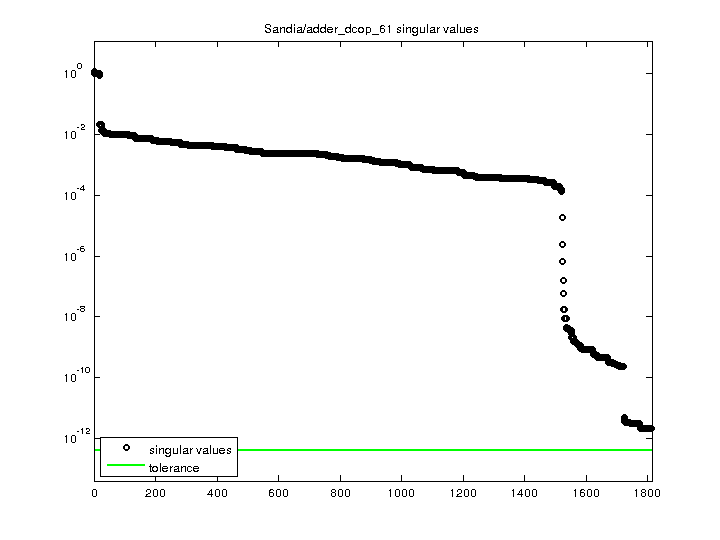

    Sandia/adder_dcop_61 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
