Matrix: SNAP/p2p-Gnutella24

Description: Gnutella peer to peer network from August 24 2002

SNAP/p2p-Gnutella24 graph SNAP/p2p-Gnutella24 graph
(bipartite graph drawing) (graph drawing of A+A')


SNAP/p2p-Gnutella24

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: SNAP
  • Click here for a description of the SNAP group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 172 KB. Use UFget(2313) or UFget('SNAP/p2p-Gnutella24') in MATLAB.
  • download in Matrix Market format, file size: 225 KB.
  • download in Rutherford/Boeing format, file size: 204 KB.

    Matrix properties
    number of rows26,518
    number of columns26,518
    nonzeros65,369
    # strongly connected comp.20,167
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorM. Ripeanu and I. Foster and A. Iamnitchi
    editorJ. Leskovec
    date2002
    kinddirected graph
    2D/3D problem?no

    Notes:

    Networks from SNAP (Stanford Network Analysis Platform) Network Data Sets,
    Jure Leskovec http://snap.stanford.edu/data/index.html
    email jure at cs.stanford.edu

    Gnutella peer-to-peer network, August 24 2002

    Dataset information

    A sequence of snapshots of the Gnutella peer-to-peer file sharing network from
    August 2002. There are total of 9 snapshots of Gnutella network collected in
    August 2002. Nodes represent hosts in the Gnutella network topology and edges
    represent connections between the Gnutella hosts.

    Dataset statistics
    Nodes   26518
    Edges   65369
    Nodes in largest WCC    26498 (0.999)
    Edges in largest WCC    65359 (1.000)
    Nodes in largest SCC    6352 (0.240)
    Edges in largest SCC    22928 (0.351)
    Average clustering coefficient  0.0094
    Number of triangles     986
    Fraction of closed triangles    0.004101
    Diameter (longest shortest path)    10
    90-percentile effective diameter    6.1

    Source (citation)

    J. Leskovec, J. Kleinberg and C. Faloutsos. Graph Evolution: Densification and
    Shrinking Diameters. ACM Transactions on Knowledge Discovery from Data (ACM
    TKDD), 1(1), 2007.

    M. Ripeanu and I. Foster and A. Iamnitchi. Mapping the Gnutella Network:
    Properties of Large-Scale Peer-to-Peer Systems and Implications for System
    Design. IEEE Internet Computing Journal, 2002.

    Files
    File    Description
    p2p-Gnutella24.txt.gz   Directed Gnutella P2P network from August 24 2002

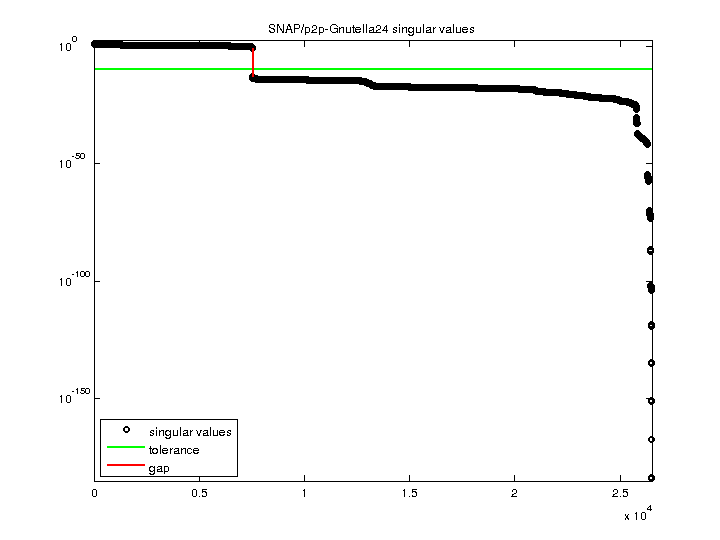

    SVD-based statistics:
    norm(A)19.116
    min(svd(A))0
    cond(A)Inf
    rank(A)7,552
    null space dimension18,966
    full numerical rank?no
    singular value gap1.05874e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    SNAP/p2p-Gnutella24 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
