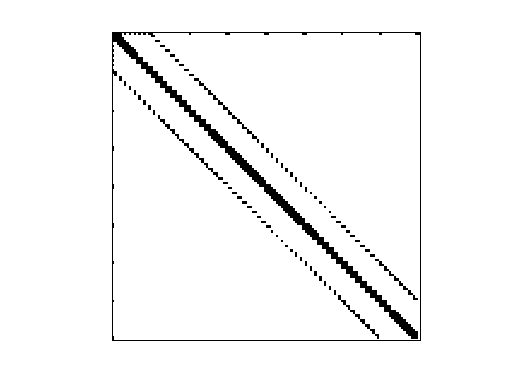

Matrix: Rajat/rajat08

Description: Rajat/rajat08 circuit simulation matrix

Rajat/rajat08 graph
(undirected graph drawing)

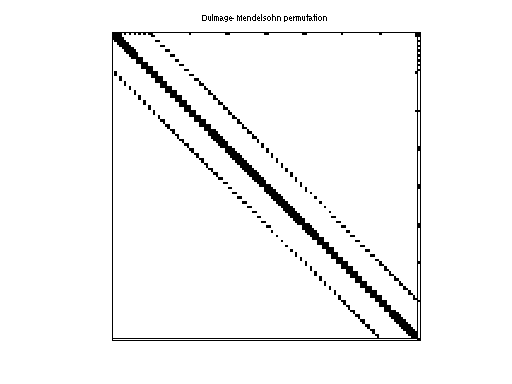

Rajat/rajat08 dmperm of Rajat/rajat08

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Rajat
  • Click here for a description of the Rajat group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 148 KB. Use UFget(1192) or UFget('Rajat/rajat08') in MATLAB.
  • download in Matrix Market format, file size: 142 KB.
  • download in Rutherford/Boeing format, file size: 134 KB.

    Matrix properties
    number of rows19,362
    number of columns19,362
    structural full rank?yes
    structural rank19,362
    # of blocks from dmperm163
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    editorT. Davis
    kindcircuit simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD235,514
    Cholesky flop count1.2e+07
    nnz(L+U), no partial pivoting, with AMD451,666
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD503,600
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD925,184

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero

    Rajat/rajat08 svd

    For a description of the statistics displayed above, click here.
