Matrix: Rajat/rajat07

Description: Rajat/rajat07 circuit simulation matrix

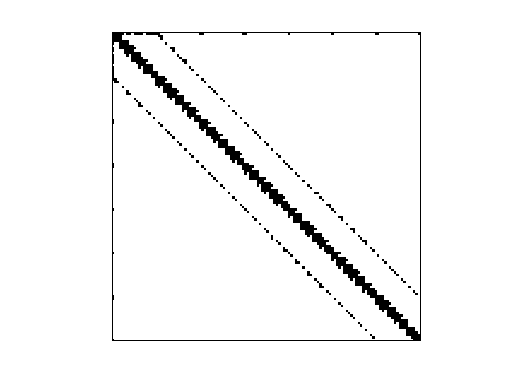

Rajat/rajat07 graph
(undirected graph drawing)

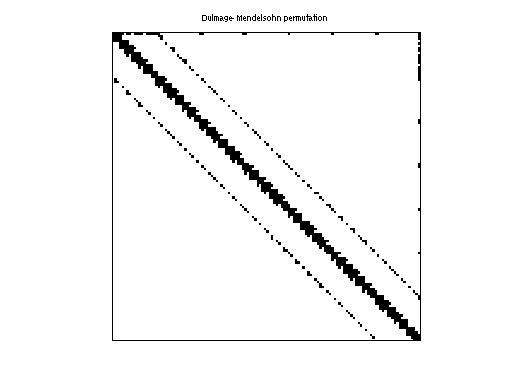

Rajat/rajat07 dmperm of Rajat/rajat07

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Rajat
  • Click here for a description of the Rajat group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 114 KB. Use UFget(1191) or UFget('Rajat/rajat07') in MATLAB.
  • download in Matrix Market format, file size: 108 KB.
  • download in Rutherford/Boeing format, file size: 103 KB.

    Matrix properties
    number of rows14,842
    number of columns14,842
    structural full rank?yes
    structural rank14,842
    # of blocks from dmperm143
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    editorT. Davis
    kindcircuit simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD201,227
    Cholesky flop count1.1e+07
    nnz(L+U), no partial pivoting, with AMD387,612
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD376,518
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD695,652

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

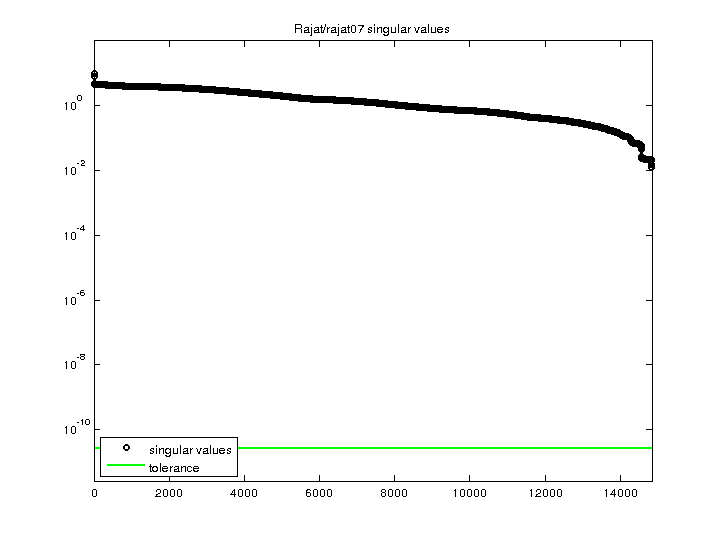

    Rajat/rajat07 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
