Matrix properties
number of rows	10,922
number of columns	10,922
nonzeros	46,983
structural full rank?	yes
structural rank	10,922

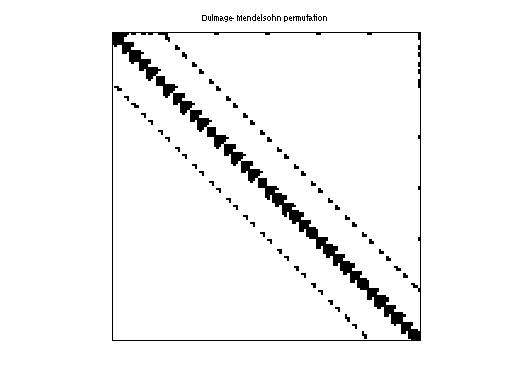

# of blocks from dmperm	123
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	binary
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	Rajat
editor	T. Davis
date	2004
kind	circuit simulation problem
2D/3D problem?	no

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	133,180
Cholesky flop count	6.9e+06
nnz(L+U), no partial pivoting, with AMD	255,438
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	255,755
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	471,428

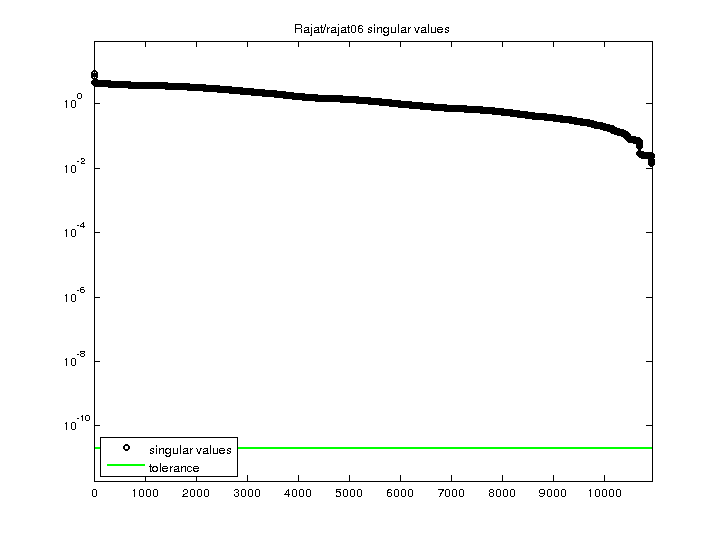

SVD-based statistics:
norm(A)	9.03803
min(svd(A))	0.0142233
cond(A)	635.439
rank(A)	10,922
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

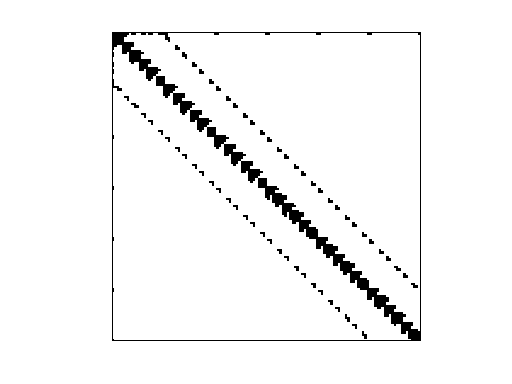

Matrix pictures by cspy, a MATLAB function in the CSparse package.
