Matrix: Qaplib/lp_nug15

Description: Netlib LP problem nug15: minimize c'*x, where Ax=b, lo<=x<=hi

Qaplib/lp_nug15 graph
(bipartite graph drawing)

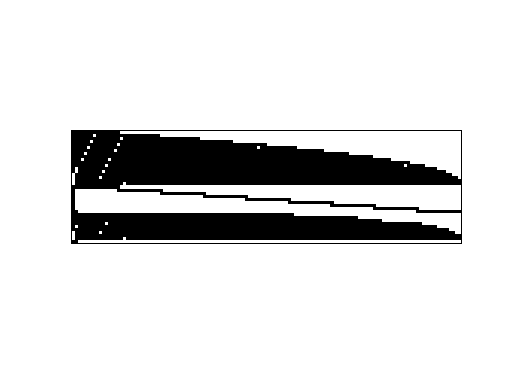

Qaplib/lp_nug15

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Qaplib
  • Click here for a description of the Qaplib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 159 KB. Use UFget(798) or UFget('Qaplib/lp_nug15') in MATLAB.
  • download in Matrix Market format, file size: 321 KB.
  • download in Rutherford/Boeing format, file size: 220 KB.

    Matrix properties
    number of rows6,330
    number of columns22,275
    nonzeros94,950
    structural full rank?yes
    structural rank6,330
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorM. Resende
    editorM. Resende
    date1995
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 6330-by-1
    cfull 22275-by-1
    lofull 22275-by-1
    hifull 22275-by-1
    z0full 1-by-1

    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD78,034,603
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD10,732,660

    SVD-based statistics:
    norm(A)9.82907
    min(svd(A))2.24453e-16
    cond(A)4.37912e+16
    rank(A)5,698
    sprank(A)-rank(A)632
    null space dimension632
    full numerical rank?no
    singular value gap3.23507e+14

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

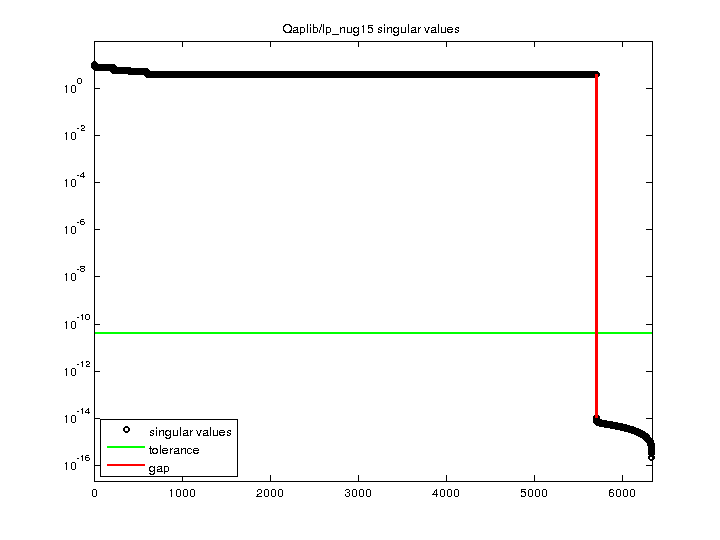

    Qaplib/lp_nug15 svd
