Matrix: Pothen/bodyy5

Description: bodyy5, with coordinates. From NASA, collected by Alex Pothen

Pothen/bodyy5 graph
(undirected graph drawing)


Pothen/bodyy5
Pothen/bodyy5 graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Pothen
  • Click here for a description of the Pothen group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(869) or UFget('Pothen/bodyy5') in MATLAB.
  • download in Matrix Market format, file size: 736 KB.
  • download in Rutherford/Boeing format, file size: 770 KB.

    Matrix properties
    number of rows18,589
    number of columns18,589
    nonzeros128,853
    structural full rank?yes
    structural rank18,589
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries428
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorNASA
    editorG. Kumfert, A. Pothen
    date2003
    kindstructural problem
    2D/3D problem?yes

    Additional fieldssize and type
    coordfull 18589-by-2

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD636,443
    Cholesky flop count6.2e+07
    nnz(L+U), no partial pivoting, with AMD1,254,297
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,010,767
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,890,280

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 428 explicit zero entries.

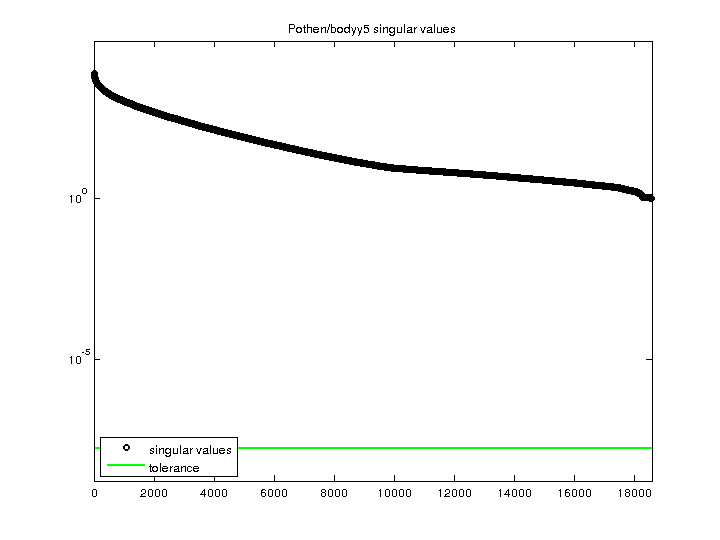

    SVD-based statistics:
    norm(A)8040.02
    min(svd(A))1.02117
    cond(A)7873.34
    rank(A)18,589
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

    Pothen/bodyy5 svd

    For a description of the statistics displayed above, click here.
