Matrix: Pajek/SciMet

Description: Pajek network: SciMet citation network

Pajek/SciMet graph Pajek/SciMet graph
(bipartite graph drawing) (graph drawing of A+A')

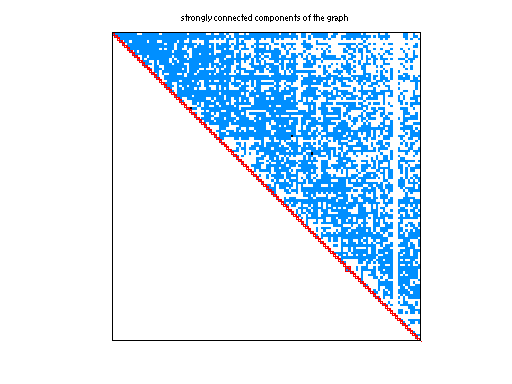

scc of Pajek/SciMet

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Pajek
  • Click here for a description of the Pajek group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 46 KB. Use UFget(1521) or UFget('Pajek/SciMet') in MATLAB.
  • download in Matrix Market format, file size: 50 KB.
  • download in Rutherford/Boeing format, file size: 41 KB.

    Matrix properties
    number of rows3,084
    number of columns3,084
    # strongly connected comp.3,072
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    Cholesky candidate?no
    positive definite?no

    authorE. Garfield
    editorV. Batagelj
    kinddirected multigraph
    2D/3D problem?no

    Additional fieldssize and type
    pubyearfull 3084-by-1
    gcsfull 3084-by-1
    nodenamefull 3084-by-24


    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
     Articles from or citing Scientometrics, 1978-2000, Wed Jun 12 16:39:51 2002

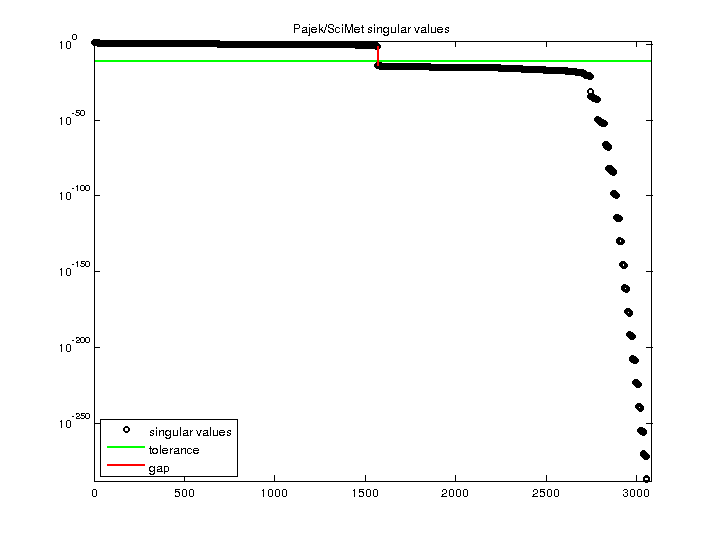

    SVD-based statistics:
    null space dimension1,515
    full numerical rank?no
    singular value gap2.27262e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

    Pajek/SciMet svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
