Matrix: Pajek/Sandi_sandi

Description: Pajek network: Klavzar bibliography

Pajek/Sandi_sandi graph
(bipartite graph drawing)


Pajek/Sandi_sandi

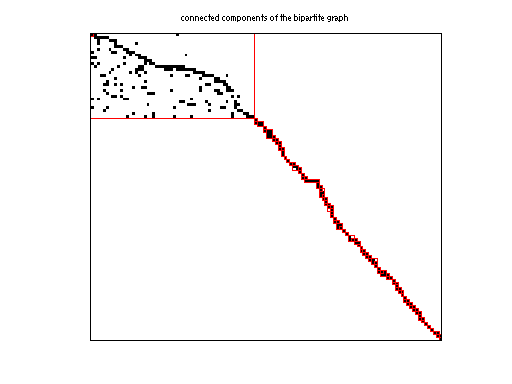

scc of Pajek/Sandi_sandi Pajek/Sandi_sandi graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Pajek
  • Click here for a description of the Pajek group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 8 KB. Use UFget(1520) or UFget('Pajek/Sandi_sandi') in MATLAB.
  • download in Matrix Market format, file size: 8 KB.
  • download in Rutherford/Boeing format, file size: 8 KB.

    Matrix properties
    number of rows314
    number of columns360
    nonzeros613
    structural full rank?no
    structural rank246
    # of blocks from dmperm122
    # strongly connected comp.129
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorI. Klavzar
    editorV. Batagelj
    date1999
    kindbipartite graph
    2D/3D problem?no

    Additional fieldssize and type
    colnamefull 360-by-8
    rownamefull 314-by-24
    coordfull 674-by-2

    Notes:

    ------------------------------------------------------------------------------
    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
    http://vlado.fmf.uni-lj.si/pub/networks/data/.
    ------------------------------------------------------------------------------
    The original problem had 3D xyz coordinates, but all values of z were equal
    to 0.5, and have been removed.  This graph has 2D coordinates.


    SVD-based statistics:
    norm(A)5.72862
    min(svd(A))3.89787e-17
    cond(A)1.46968e+17
    rank(A)239
    sprank(A)-rank(A)7
    null space dimension75
    full numerical rank?no
    singular value gap2.45259e+14

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

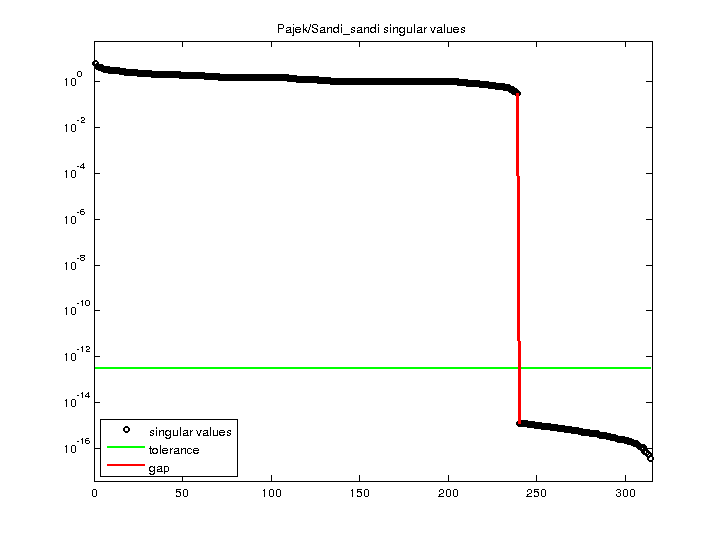

    Pajek/Sandi_sandi svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
