Matrix: Norris/torso2

Description: S.Norris, Univ Auckland. finite diff. electro-phys. 2D model of torso

Norris/torso2 graph Norris/torso2 graph
(bipartite graph drawing) (graph drawing of A+A')


Norris/torso2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Norris
  • Click here for a description of the Norris group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 MB. Use UFget(897) or UFget('Norris/torso2') in MATLAB.
  • download in Matrix Market format, file size: 11 MB.
  • download in Rutherford/Boeing format, file size: 9 MB.

    Matrix properties
    number of rows115,967
    number of columns115,967
    nonzeros1,033,473
    structural full rank?yes
    structural rank115,967
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 99%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorS. Norris
    editorT. Davis
    date2003
    kind2D/3D problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD4,955,396
    Cholesky flop count6.9e+08
    nnz(L+U), no partial pivoting, with AMD9,794,825
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD9,141,540
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD17,136,972

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

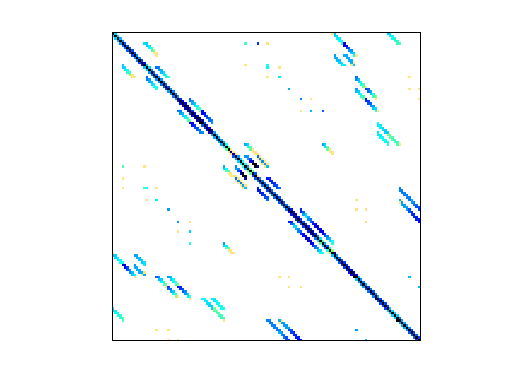

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
