Matrix: Norris/lung1

Description: S.Norris, Univ. Auckland. Coupled temp,water vapour transport in lung

Norris/lung1 graph Norris/lung1 graph
(bipartite graph drawing) (graph drawing of A+A')

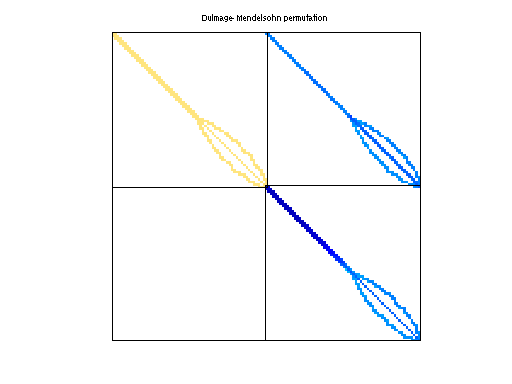

Norris/lung1 dmperm of Norris/lung1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Norris
  • Click here for a description of the Norris group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 30 KB. Use UFget(893) or UFget('Norris/lung1') in MATLAB.
  • download in Matrix Market format, file size: 52 KB.
  • download in Rutherford/Boeing format, file size: 42 KB.

    Matrix properties
    number of rows1,650
    number of columns1,650
    nonzeros7,419
    structural full rank?yes
    structural rank1,650
    # of blocks from dmperm2
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetry 57%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorS. Norris
    editorT. Davis
    date2003
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD5,771
    Cholesky flop count2.1e+04
    nnz(L+U), no partial pivoting, with AMD9,892
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD5,080
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD9,751

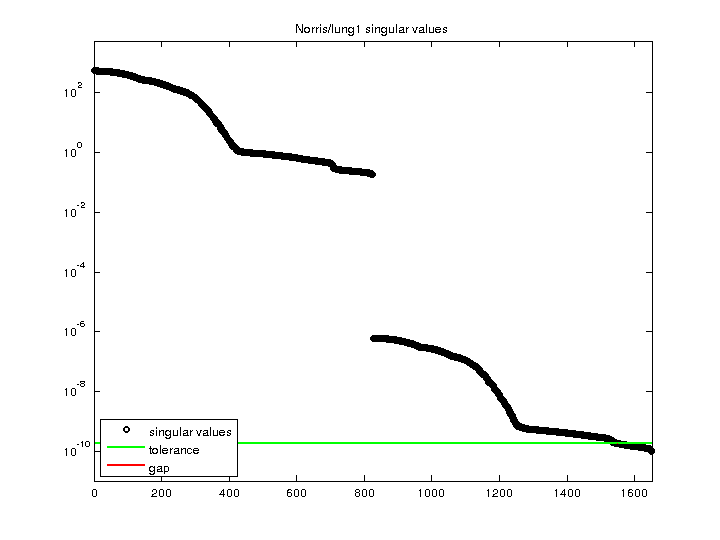

    SVD-based statistics:
    norm(A)516.923
    min(svd(A))1.05656e-10
    cond(A)4.8925e+12
    rank(A)1,549
    sprank(A)-rank(A)101
    null space dimension101
    full numerical rank?no
    singular value gap1.0106

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Norris/lung1 svd

    For a description of the statistics displayed above, click here.
