Matrix: NYPA/Maragal_8

Description: Rank deficient problem, D. Maragal, NY Power Authority

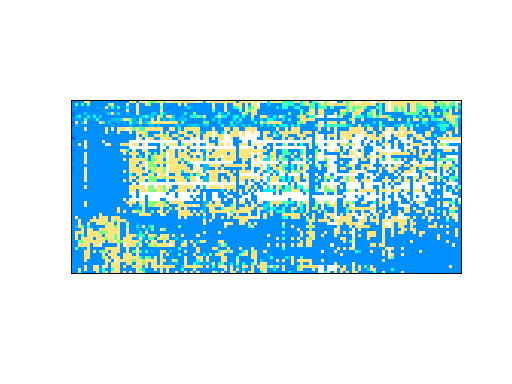

NYPA/Maragal_8 graph
(bipartite graph drawing)

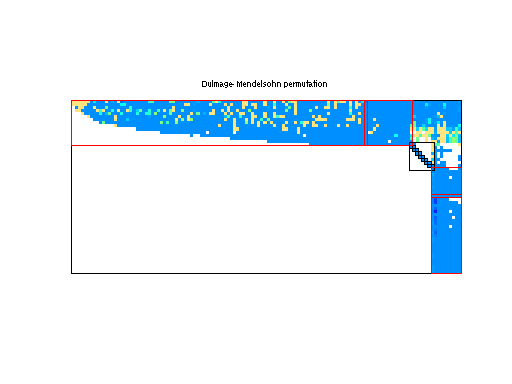

NYPA/Maragal_8 dmperm of NYPA/Maragal_8

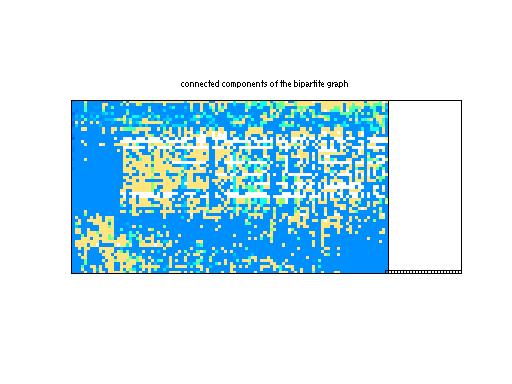

scc of NYPA/Maragal_8

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: NYPA
  • Click here for a description of the NYPA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 MB. Use UFget(2217) or UFget('NYPA/Maragal_8') in MATLAB.
  • download in Matrix Market format, file size: 10 MB.
  • download in Rutherford/Boeing format, file size: 9 MB.

    Matrix properties
    number of rows33,212
    number of columns75,077
    nonzeros1,308,415
    structural full rank?no
    structural rank18,456
    # of blocks from dmperm1,799
    # strongly connected comp.14,353
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorD. Maragal
    editorT. Davis
    date2008
    kindleast squares problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 33212-by-1

    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD219,451,939
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD68,411,814

    SVD-based statistics:
    norm(A)12.5931
    min(svd(A))0
    cond(A)Inf
    rank(A)15,343
    sprank(A)-rank(A)3,113
    null space dimension17,869
    full numerical rank?no
    singular value gap695701

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

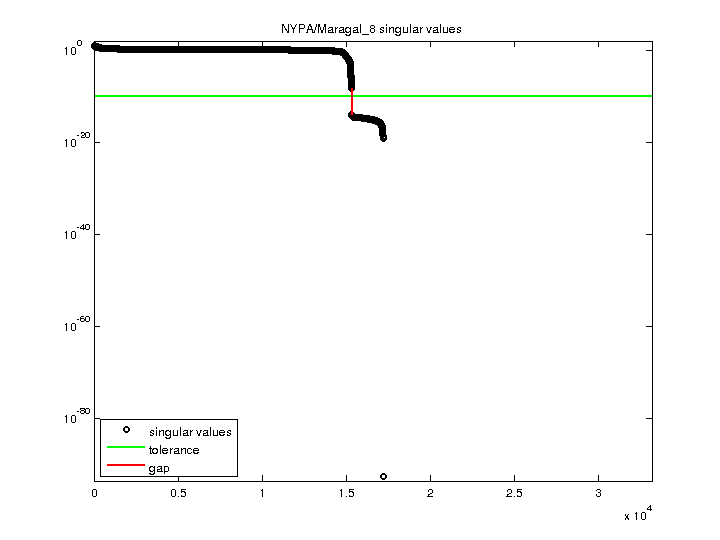

    NYPA/Maragal_8 svd

    For a description of the statistics displayed above, click here.
