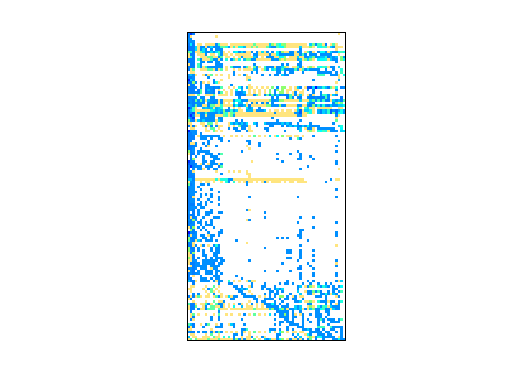

Matrix: NYPA/Maragal_3

Description: Rank deficient least squares problem, D. Maragal, NY Power Authority

NYPA/Maragal_3 graph
(bipartite graph drawing)

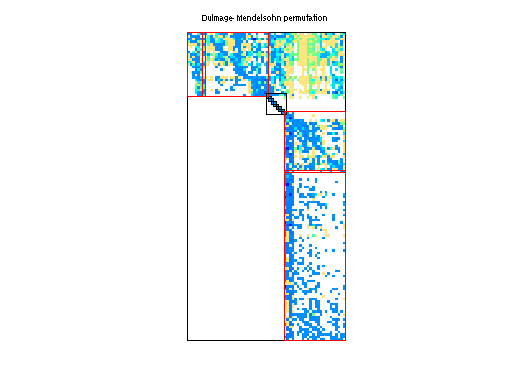

NYPA/Maragal_3 dmperm of NYPA/Maragal_3

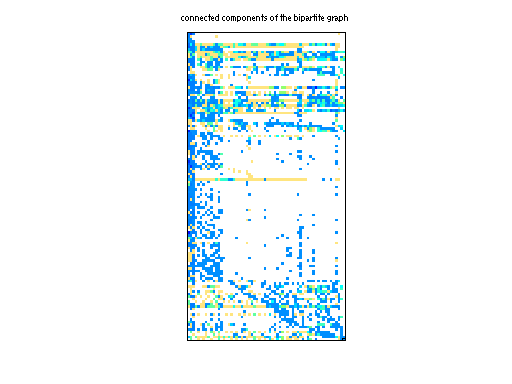

scc of NYPA/Maragal_3

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: NYPA
  • Click here for a description of the NYPA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 81 KB. Use UFget(1886) or UFget('NYPA/Maragal_3') in MATLAB.
  • download in Matrix Market format, file size: 120 KB.
  • download in Rutherford/Boeing format, file size: 108 KB.

    Matrix properties
    number of rows1,690
    number of columns860
    nonzeros18,391
    structural full rank?no
    structural rank765
    # of blocks from dmperm35
    # strongly connected comp.11
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorD. Maragal
    editorT. Davis
    date2008
    kindleast squares problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 1690-by-1

    Notes:

    rank deficient (rank(A) < sprank(A) < size(A,2))
    rank: 613 sprank: 765 columns: 860


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD380,210
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD286,936

    SVD-based statistics:
    norm(A)12.6441
    min(svd(A))8.49015e-47
    cond(A)1.48926e+47
    rank(A)613
    sprank(A)-rank(A)152
    null space dimension247
    full numerical rank?no
    singular value gap3.58349e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

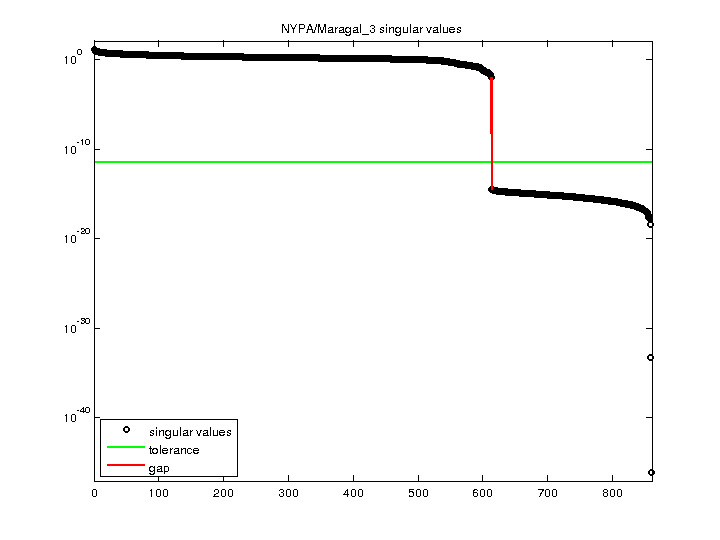

    NYPA/Maragal_3 svd

    For a description of the statistics displayed above, click here.
