Matrix: Morandini/rotor1

Description: Marco Morandini, small helicoptor rotor model

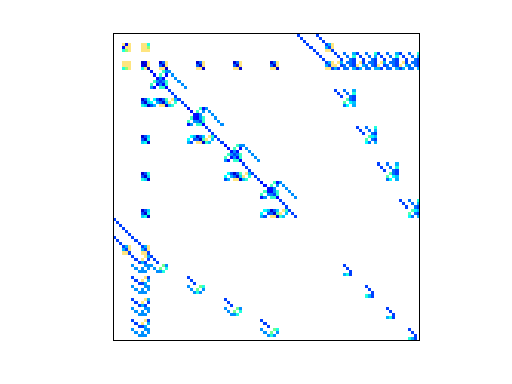

Morandini/rotor1 graph Morandini/rotor1 graph
(bipartite graph drawing) (graph drawing of A+A')

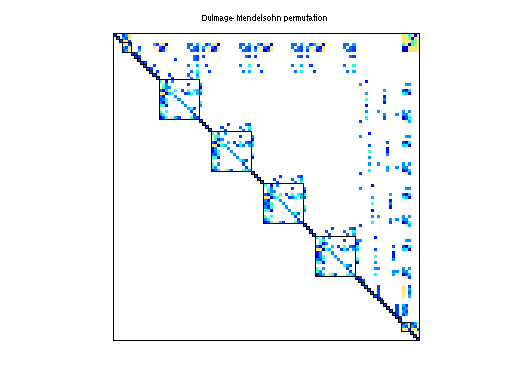

Morandini/rotor1 dmperm of Morandini/rotor1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Morandini
  • Click here for a description of the Morandini group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 KB. Use UFget(1326) or UFget('Morandini/rotor1') in MATLAB.
  • download in Matrix Market format, file size: 4 KB.
  • download in Rutherford/Boeing format, file size: 3 KB.

    Matrix properties
    number of rows100
    number of columns100
    nonzeros708
    structural full rank?yes
    structural rank100
    # of blocks from dmperm48
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 51%
    numeric value symmetry 7%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorM. Morandini
    editorT. Davis
    date2006
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD762
    Cholesky flop count6.7e+03
    nnz(L+U), no partial pivoting, with AMD1,424
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,352
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,049

    SVD-based statistics:
    norm(A)50002.4
    min(svd(A))2.11712e-08
    cond(A)2.36182e+12
    rank(A)100
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

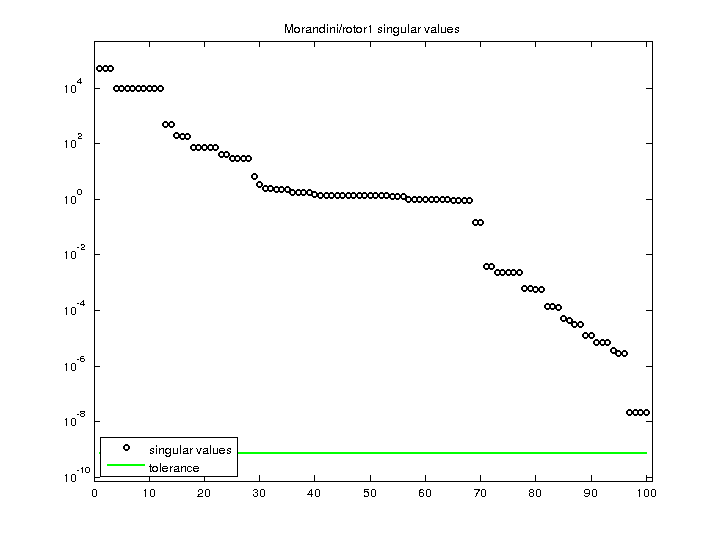

    Morandini/rotor1 svd

    For a description of the statistics displayed above, click here.
