Matrix: Mittelmann/spal_004

Description: Linear programming problem (H. Mittelman test set)

Mittelmann/spal_004 graph
(bipartite graph drawing)


Mittelmann/spal_004

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 130 MB. Use UFget(1674) or UFget('Mittelmann/spal_004') in MATLAB.
  • download in Matrix Market format, file size: 205 MB.
  • download in Rutherford/Boeing format, file size: 101 MB.

    Matrix properties
    number of rows10,203
    number of columns321,696
    nonzeros46,168,124
    structural full rank?yes
    structural rank10,203
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorH. Mittelmann
    date2005
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 10203-by-1
    cfull 321696-by-1
    lofull 321696-by-1
    hifull 321696-by-1
    z0full 1-by-1

    Notes:

    Hans Mittelmann test set, http://plato.asu.edu/ftp/lptestset
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,062,060,062
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD50,727,756

    SVD-based statistics:
    norm(A)0.144294
    min(svd(A))3.66322e-06
    cond(A)39389.9
    rank(A)10,203
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

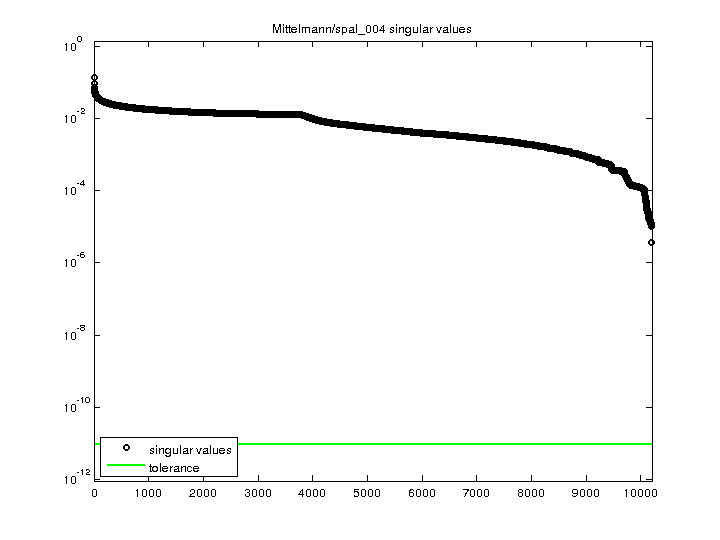

    Mittelmann/spal_004 svd

    For a description of the statistics displayed above, click here.
