Matrix: Mittelmann/rail507

Description: Italian railways (H. Mittelmann test set)

Mittelmann/rail507 graph
(bipartite graph drawing)

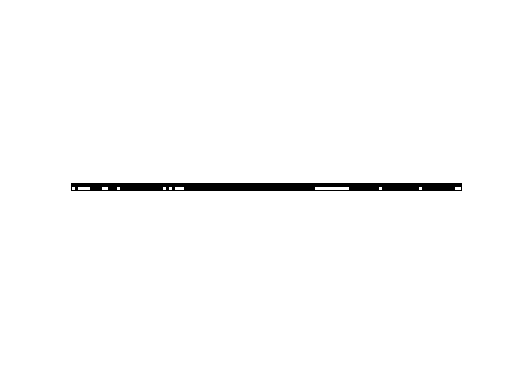

Mittelmann/rail507

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 337 KB. Use UFget(1654) or UFget('Mittelmann/rail507') in MATLAB.
  • download in Matrix Market format, file size: 998 KB.
  • download in Rutherford/Boeing format, file size: 418 KB.

    Matrix properties
    number of rows507
    number of columns63,516
    nonzeros409,856
    structural full rank?yes
    structural rank507
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorP. Nobili
    editorJ. Beasley
    date2005
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 507-by-1
    cfull 63516-by-1
    lofull 63516-by-1
    hifull 63516-by-1
    z0full 1-by-1

    Notes:

    Hans Mittelmann test set, http://plato.asu.edu/ftp/lptestset
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    RAIL: set covering problems from the Italian railroad, see
    http://people.brunel.ac.uk/~mastjjb/jeb/orlib/scpinfo.html


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD20,526,974
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD97,026

    SVD-based statistics:
    norm(A)149.326
    min(svd(A))1
    cond(A)149.326
    rank(A)507
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

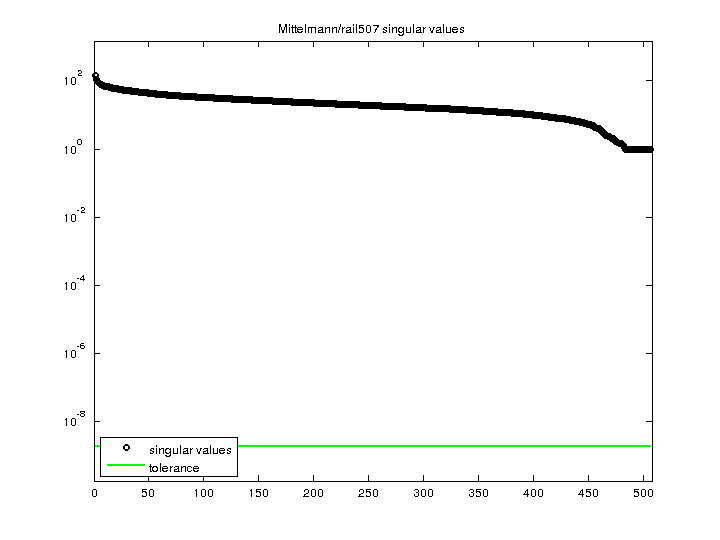

    Mittelmann/rail507 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
