Matrix: Mittelmann/rail2586

Description: Italian railways (H. Mittelmann test set)

Mittelmann/rail2586 graph
(bipartite graph drawing)

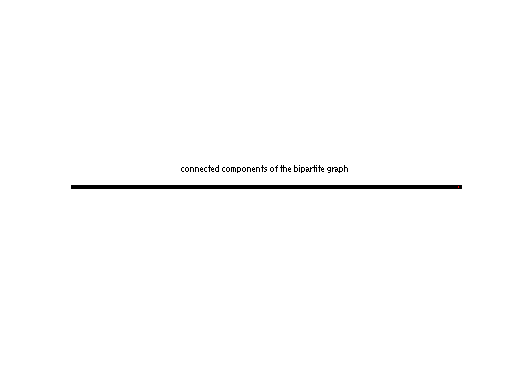

scc of Mittelmann/rail2586

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 6 MB. Use UFget(1657) or UFget('Mittelmann/rail2586') in MATLAB.
  • download in Matrix Market format, file size: 20 MB.
  • download in Rutherford/Boeing format, file size: 7 MB.

    Matrix properties
    number of rows2,586
    number of columns923,269
    structural full rank?yes
    structural rank2,586
    # of blocks from dmperm1
    # strongly connected comp.8
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    Cholesky candidate?no
    positive definite?no

    authorP. Nobili
    editorJ. Beasley
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 2586-by-1
    cfull 923269-by-1
    lofull 923269-by-1
    hifull 923269-by-1
    z0full 1-by-1


    Hans Mittelmann test set,
    minimize c'*x, subject to A*x=b and lo <= x <= hi
    RAIL: set covering problems from the Italian railroad, see

    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,052,862,453
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,522,581

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero

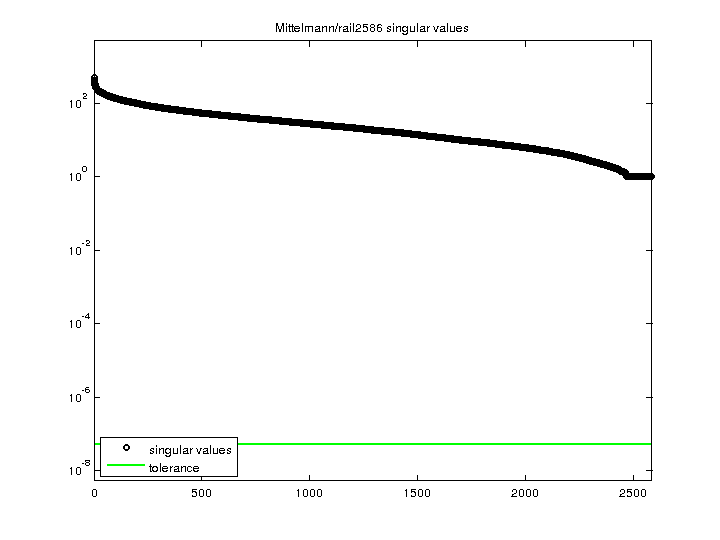

    Mittelmann/rail2586 svd

    For a description of the statistics displayed above, click here.
