Matrix: Mittelmann/pds-50

Description: Patient distribution (evacuation) system

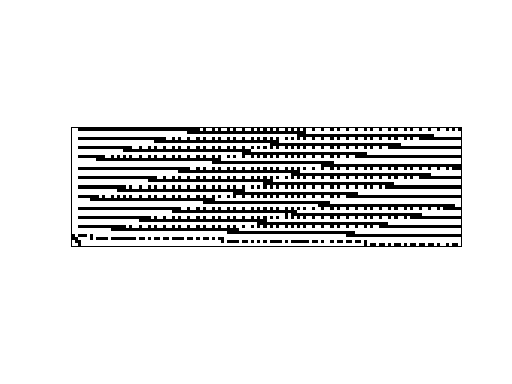

Mittelmann/pds-50 graph
(bipartite graph drawing)

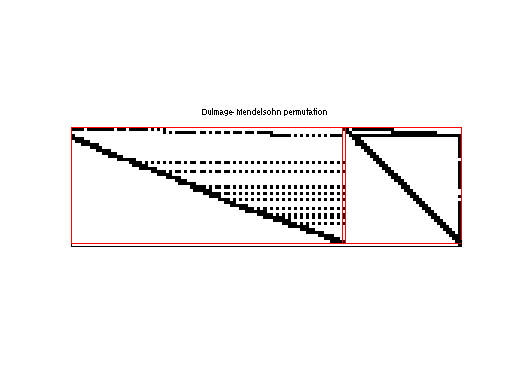

Mittelmann/pds-50 dmperm of Mittelmann/pds-50

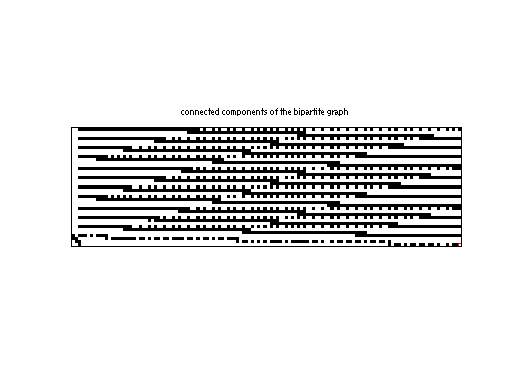

scc of Mittelmann/pds-50

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(1648) or UFget('Mittelmann/pds-50') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows83,060
    number of columns275,814
    nonzeros590,833
    structural full rank?no
    structural rank82,837
    # of blocks from dmperm1,405
    # strongly connected comp.224
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorW. Carolan, J. Hill, J. Kennington, S. Niemi, S. Wichmann
    editorH. Mittelmann
    date1990
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 83060-by-1
    cfull 275814-by-1
    lofull 275814-by-1
    hifull 275814-by-1
    z0full 1-by-1

    Notes:

    Hans Mittelmann test set, http://plato.asu.edu/ftp/lptestset
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    PDS:  Patient distribution (evacuation) system. see
    W. Carolan, J. Hill, J. Kennington, S. Niemi, and S. Wichmann, "An
    Empirical Evaluation of the KORBX Algorithms for Military Airlift,"
    Applications, Operations Research, 38, (1990), 240-248.


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,341,173,334
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD39,895,809

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
