Matrix: Mittelmann/nug08-3rd

Description: LP lower bounds for quadratic assignment problems

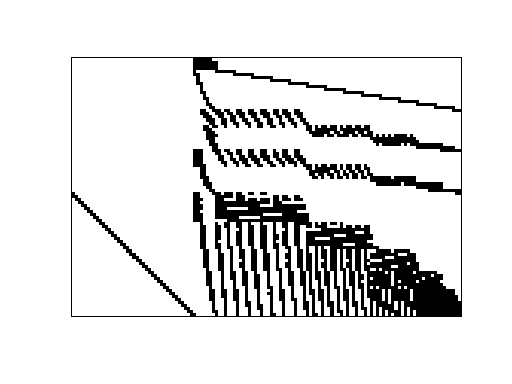

Mittelmann/nug08-3rd graph
(bipartite graph drawing)


Mittelmann/nug08-3rd

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 312 KB. Use UFget(1645) or UFget('Mittelmann/nug08-3rd') in MATLAB.
  • download in Matrix Market format, file size: 531 KB.
  • download in Rutherford/Boeing format, file size: 390 KB.

    Matrix properties
    number of rows19,728
    number of columns29,856
    nonzeros148,416
    structural full rank?yes
    structural rank19,728
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorS. Karisch, F. Rendl
    editorH. Mittelmann
    date1995
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 19728-by-1
    cfull 29856-by-1
    lofull 29856-by-1
    hifull 29856-by-1
    z0full 1-by-1

    Notes:

    Hans Mittelmann test set, http://plato.asu.edu/ftp/lptestset
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    NUG:  computing LP lower bounds for quadratic assignment problems.  see
    S.E. KARISCH and F. RENDL. Lower bounds for the quadratic assignment
    problem via triangle decompositions.  Mathematical Programming,
    71(2):137-152, 1995.
    K.G. Ramakrishnan, M.G.C. Resende, B. Ramachandran, and J.F. Pekny,
    "Tight QAP bounds via linear programming," Combinatorial and Global
    Optimization, P.M. Pardalos, A. Migdalas, and R.E. Burkard, eds.,
    World Scientific Publishing Co., Singapore, pp. 297-303, 2002.


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD184,473,912
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD114,635,182

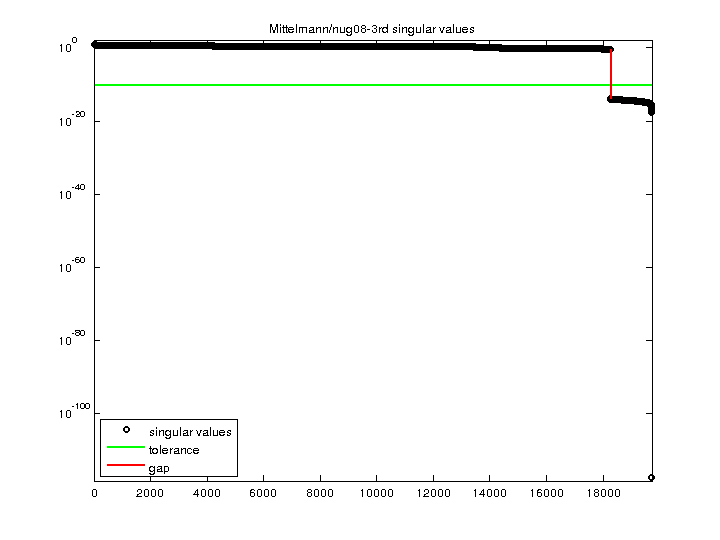

    SVD-based statistics:
    norm(A)8.11519
    min(svd(A))4.76129e-118
    cond(A)1.70441e+118
    rank(A)18,270
    sprank(A)-rank(A)1,458
    null space dimension1,458
    full numerical rank?no
    singular value gap2.98861e+13

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    Mittelmann/nug08-3rd svd

    For a description of the statistics displayed above, click here.
