Matrix: Mittelmann/fome21

Description: Linear programming problem (H. Mittelmann test set)

Mittelmann/fome21 graph
(bipartite graph drawing)

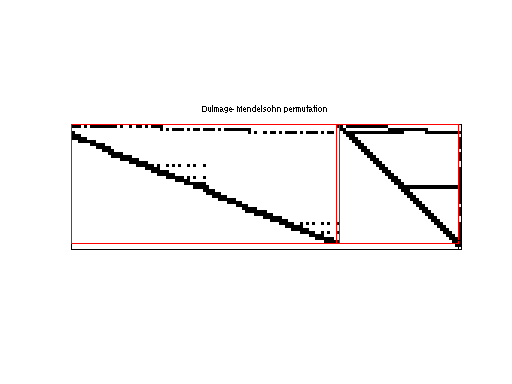

Mittelmann/fome21 dmperm of Mittelmann/fome21

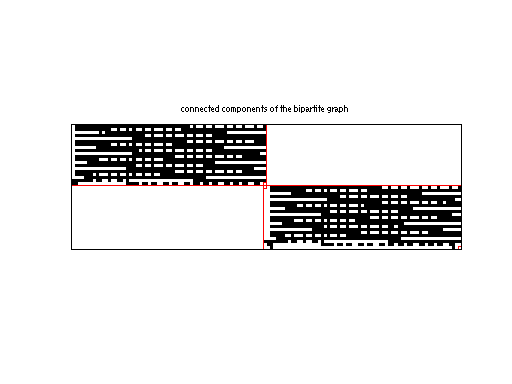

scc of Mittelmann/fome21

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(1669) or UFget('Mittelmann/fome21') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows67,748
    number of columns216,350
    nonzeros465,294
    structural full rank?no
    structural rank67,596
    # of blocks from dmperm1,704
    # strongly connected comp.154
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorH. Mittelmann
    date2005
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 67748-by-1
    cfull 216350-by-1
    lofull 216350-by-1
    hifull 216350-by-1
    z0full 1-by-1

    Notes:

    Hans Mittelmann test set, http://plato.asu.edu/ftp/lptestset
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD392,806,164
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD13,654,156

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
