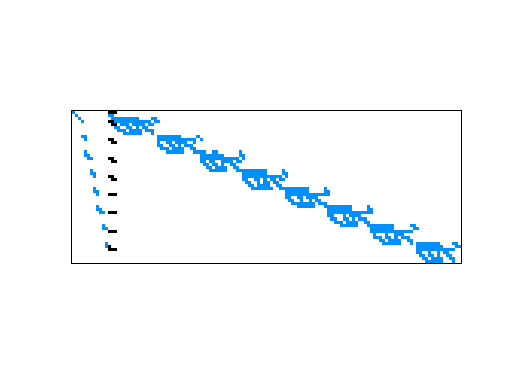

Matrix: Meszaros/stormg2-8

Description: Deterministic equiv. of stochastic linear programming problem

Meszaros/stormg2-8 graph
(bipartite graph drawing)

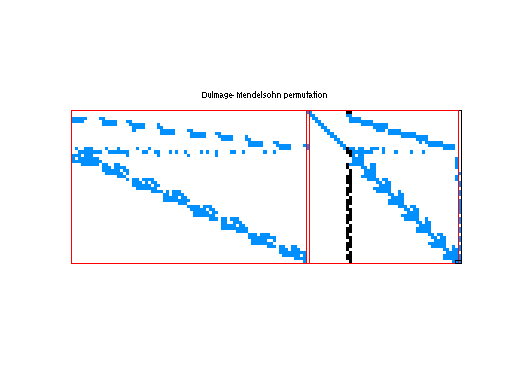

Meszaros/stormg2-8 dmperm of Meszaros/stormg2-8

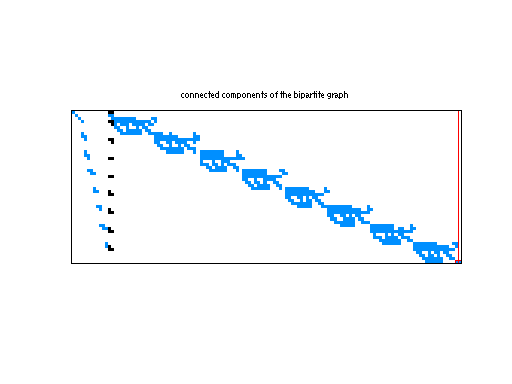

scc of Meszaros/stormg2-8

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 64 KB. Use UFget(1811) or UFget('Meszaros/stormg2-8') in MATLAB.
  • download in Matrix Market format, file size: 97 KB.
  • download in Rutherford/Boeing format, file size: 78 KB.

    Matrix properties
    number of rows4,409
    number of columns11,322
    nonzeros28,553
    structural full rank?no
    structural rank4,393
    # of blocks from dmperm26
    # strongly connected comp.41
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 4409-by-1
    cfull 11322-by-1
    lofull 11322-by-1
    hifull 11322-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD2,263,891
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD124,656

    SVD-based statistics:
    norm(A)305.398
    min(svd(A))0
    cond(A)Inf
    rank(A)4,393
    sprank(A)-rank(A)0
    null space dimension16
    full numerical rank?no
    singular value gapInf

    singular values (MAT file):click here
    SVD method used:s = piro_band_svd (A)
    status:ok

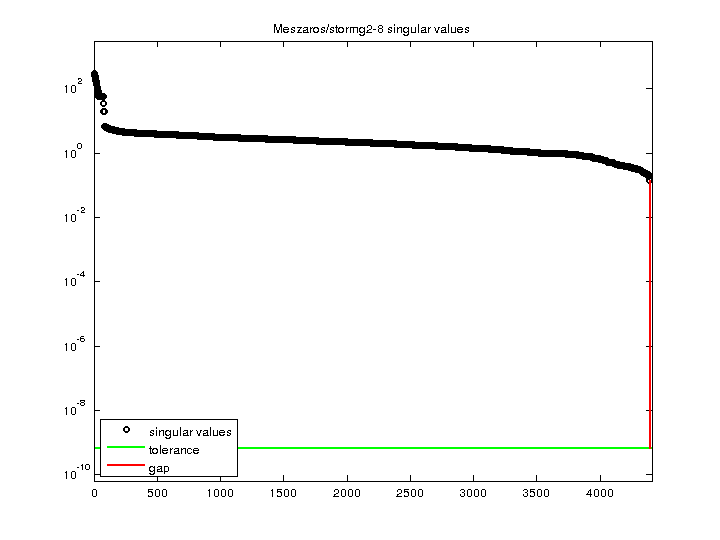

    Meszaros/stormg2-8 svd

    For a description of the statistics displayed above, click here.
