Matrix: Meszaros/pf2177

Description: linear programming problem, C. Meszaros test set

Meszaros/pf2177 graph
(bipartite graph drawing)


Meszaros/pf2177

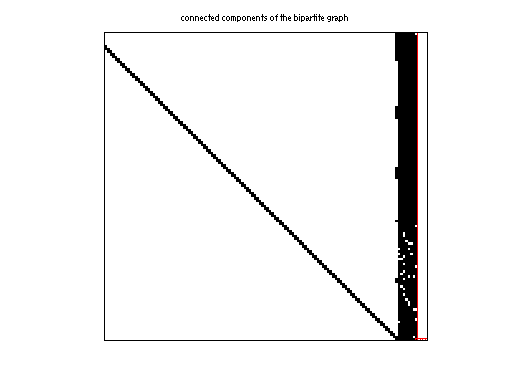

scc of Meszaros/pf2177

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 73 KB. Use UFget(1753) or UFget('Meszaros/pf2177') in MATLAB.
  • download in Matrix Market format, file size: 103 KB.
  • download in Rutherford/Boeing format, file size: 92 KB.

    Matrix properties
    number of rows9,728
    number of columns10,178
    nonzeros30,984
    structural full rank?yes
    structural rank9,728
    # of blocks from dmperm1
    # strongly connected comp.271
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 9728-by-1
    cfull 10178-by-1
    lofull 10178-by-1
    hifull 10178-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,032,468
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD12,386,025

    SVD-based statistics:
    norm(A)9.75131
    min(svd(A))9.67072e-16
    cond(A)1.00833e+16
    rank(A)9,662
    sprank(A)-rank(A)66
    null space dimension66
    full numerical rank?no
    singular value gap1.71296e+13

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

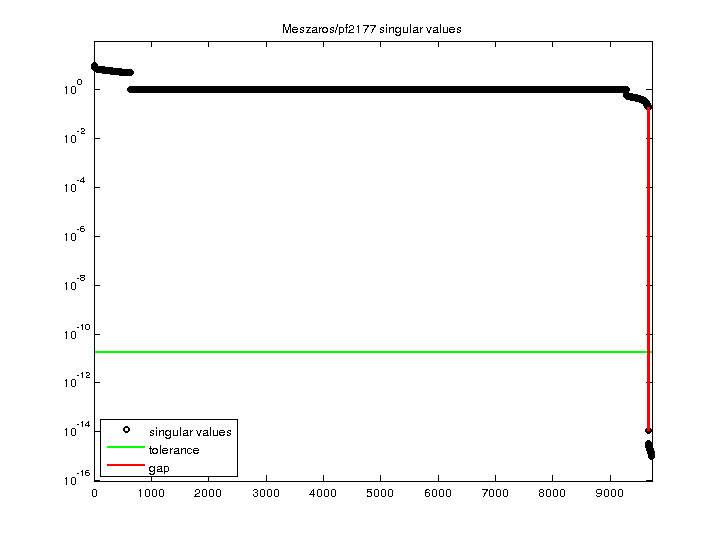

    Meszaros/pf2177 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
