Matrix: Meszaros/nemspmm1

Description: linear programming problem, C. Meszaros test set

Meszaros/nemspmm1 graph
(bipartite graph drawing)

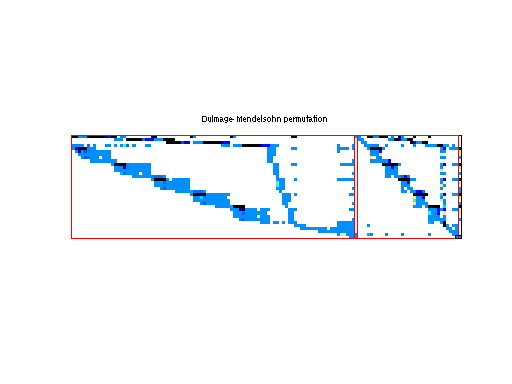

Meszaros/nemspmm1 dmperm of Meszaros/nemspmm1

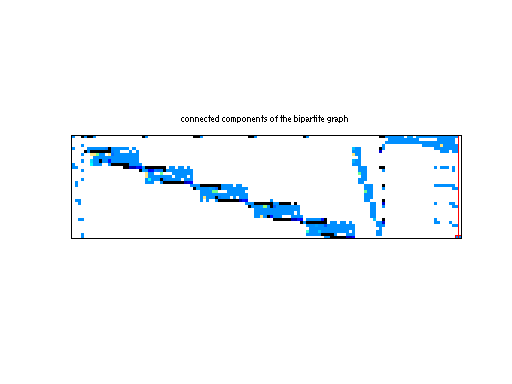

scc of Meszaros/nemspmm1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 157 KB. Use UFget(1736) or UFget('Meszaros/nemspmm1') in MATLAB.
  • download in Matrix Market format, file size: 215 KB.
  • download in Rutherford/Boeing format, file size: 155 KB.

    Matrix properties
    number of rows2,372
    number of columns8,903
    structural full rank?no
    structural rank2,362
    # of blocks from dmperm35
    # strongly connected comp.32
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    Cholesky candidate?no
    positive definite?no

    editorC. Meszaros
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 2372-by-1
    cfull 8903-by-1
    lofull 8903-by-1
    hifull 8903-by-1
    z0full 1-by-1

    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD2,138,194
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD122,356

    SVD-based statistics:
    null space dimension10
    full numerical rank?no
    singular value gap4.90777e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

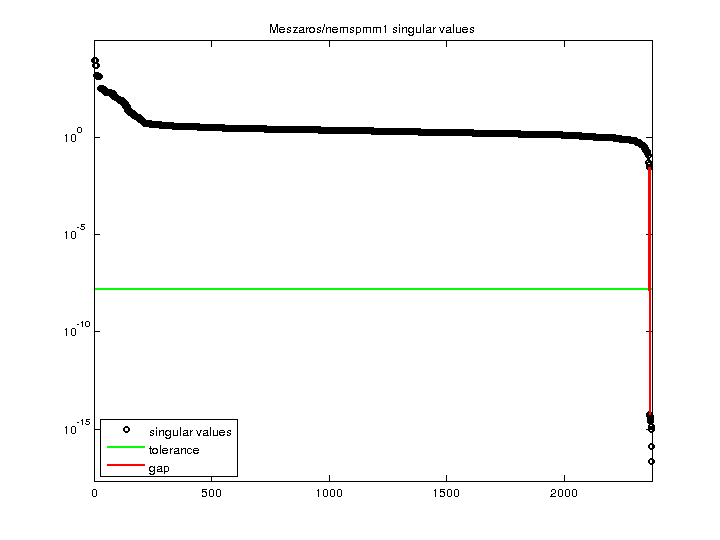

    Meszaros/nemspmm1 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
