Matrix: Meszaros/fxm4_6

Description: Deterministic equiv. of stochastic linear programming problem

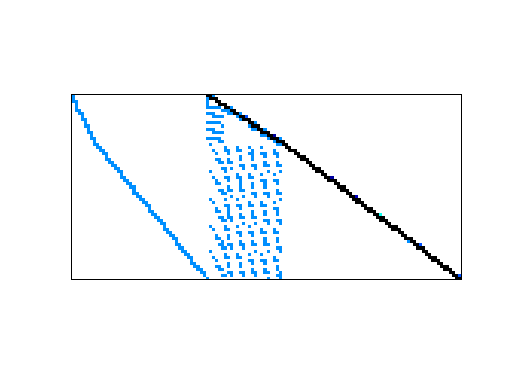

Meszaros/fxm4_6 graph
(bipartite graph drawing)

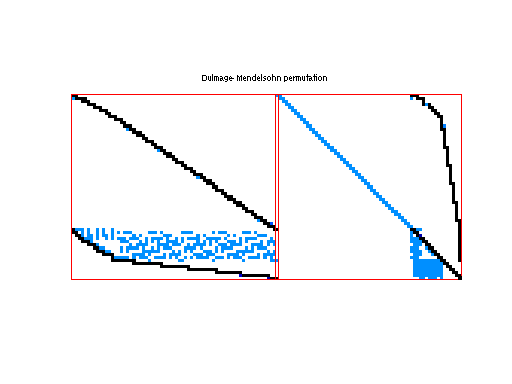

Meszaros/fxm4_6 dmperm of Meszaros/fxm4_6

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 992 KB. Use UFget(1807) or UFget('Meszaros/fxm4_6') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 462 KB.

    Matrix properties
    number of rows22,400
    number of columns47,185
    nonzeros265,442
    structural full rank?yes
    structural rank22,400
    # of blocks from dmperm159
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 22400-by-1
    cfull 47185-by-1
    lofull 47185-by-1
    hifull 47185-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD10,689,886
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD636,573

    SVD-based statistics:
    norm(A)1014.14
    min(svd(A))0.0419622
    cond(A)24167.9
    rank(A)22,400
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    Meszaros/fxm4_6 svd
