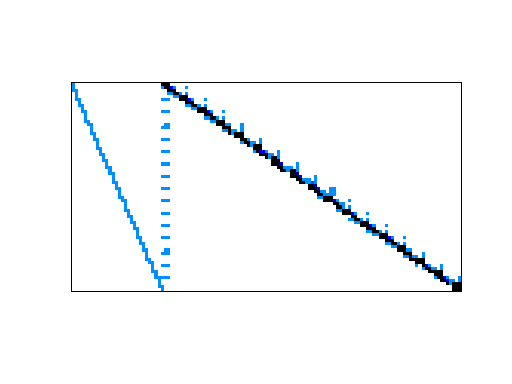

Matrix: Meszaros/fxm2-16

Description: Deterministic equiv. of stochastic linear programming problem

Meszaros/fxm2-16 graph
(bipartite graph drawing)

Meszaros/fxm2-16 dmperm of Meszaros/fxm2-16

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 120 KB. Use UFget(1804) or UFget('Meszaros/fxm2-16') in MATLAB.
  • download in Matrix Market format, file size: 137 KB.
  • download in Rutherford/Boeing format, file size: 88 KB.

    Matrix properties
    number of rows3,900
    number of columns7,335
    structural full rank?yes
    structural rank3,900
    # of blocks from dmperm99
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    Cholesky candidate?no
    positive definite?no

    editorC. Meszaros
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 3900-by-1
    cfull 7335-by-1
    lofull 7335-by-1
    hifull 7335-by-1
    z0full 1-by-1

    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD764,112
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD76,015

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

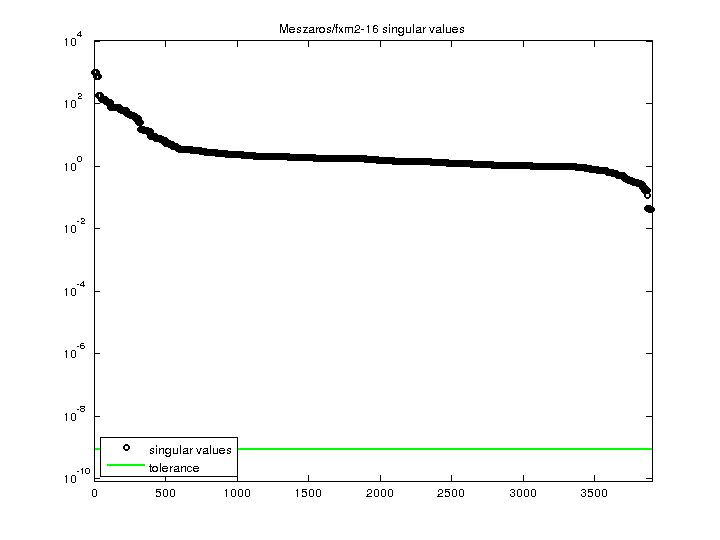

    Meszaros/fxm2-16 svd

    For a description of the statistics displayed above, click here.
