Matrix: Meszaros/df2177

Description: linear programming problem, C. Meszaros test set

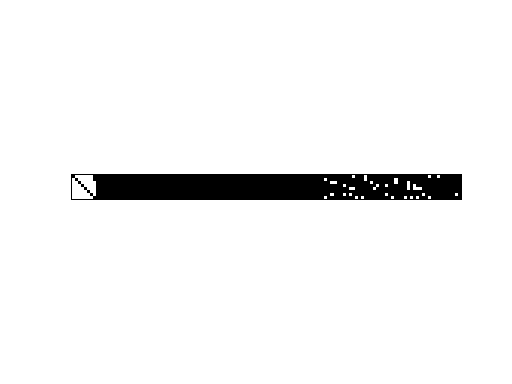

Meszaros/df2177 graph
(bipartite graph drawing)


Meszaros/df2177

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 50 KB. Use UFget(1707) or UFget('Meszaros/df2177') in MATLAB.
  • download in Matrix Market format, file size: 70 KB.
  • download in Rutherford/Boeing format, file size: 59 KB.

    Matrix properties
    number of rows630
    number of columns10,358
    nonzeros22,336
    structural full rank?yes
    structural rank630
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 630-by-1
    cfull 10358-by-1
    lofull 10358-by-1
    hifull 10358-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,885,000
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD151,267

    SVD-based statistics:
    norm(A)9.77033
    min(svd(A))4.86905
    cond(A)2.00662
    rank(A)630
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

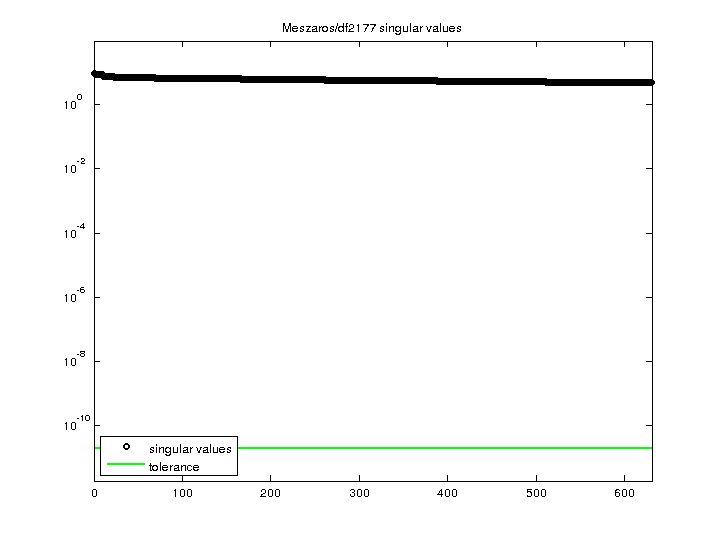

    Meszaros/df2177 svd
