Matrix: Mallya/lhr34c

Description: Light hydrocarbon recovery, corrected version of LHR34

Mallya/lhr34c graph Mallya/lhr34c graph
(bipartite graph drawing) (graph drawing of A+A')

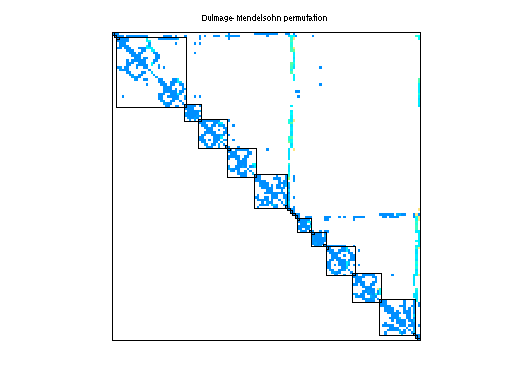

Mallya/lhr34c dmperm of Mallya/lhr34c

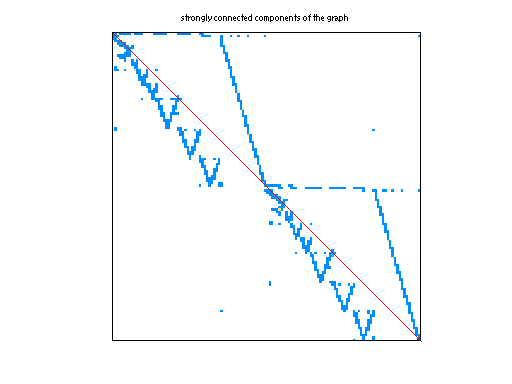

scc of Mallya/lhr34c

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mallya
  • Click here for a description of the Mallya group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 5 MB. Use UFget(749) or UFget('Mallya/lhr34c') in MATLAB.
  • download in Matrix Market format, file size: 5 MB.
  • download in Rutherford/Boeing format, file size: 4 MB.

    Matrix properties
    number of rows35,152
    number of columns35,152
    nonzeros764,014
    structural full rank?yes
    structural rank35,152
    # of blocks from dmperm3,533
    # strongly connected comp.61
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Mallya
    editorT. Davis
    date1997
    kindchemical process simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD70,123,656
    Cholesky flop count3.6e+11
    nnz(L+U), no partial pivoting, with AMD140,212,160
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,660,979
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,379,045

    SVD-based statistics:
    norm(A)19.913
    min(svd(A))1.10555e-15
    cond(A)1.80118e+16
    rank(A)35,143
    sprank(A)-rank(A)9
    null space dimension9
    full numerical rank?no
    singular value gap5.50102

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

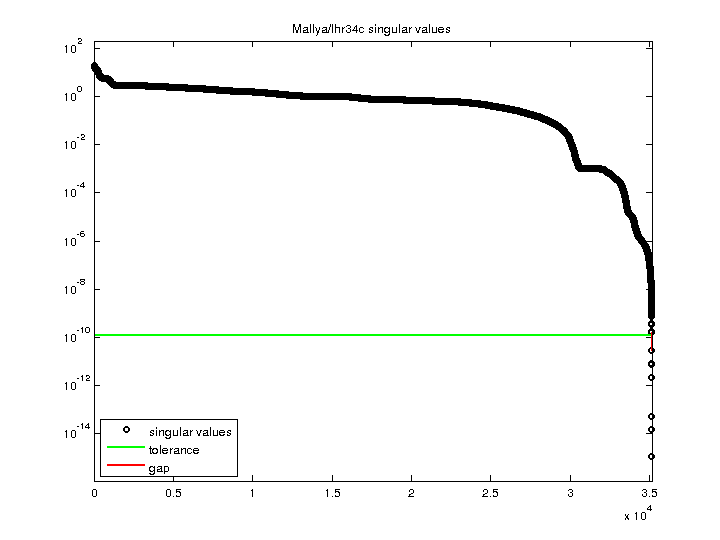

    Mallya/lhr34c svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
