Matrix: Mallya/lhr17

Description: Light hydrocarbon recovery. OK if illconditioned,from a nonlinear solvr

Mallya/lhr17 graph Mallya/lhr17 graph
(bipartite graph drawing) (graph drawing of A+A')

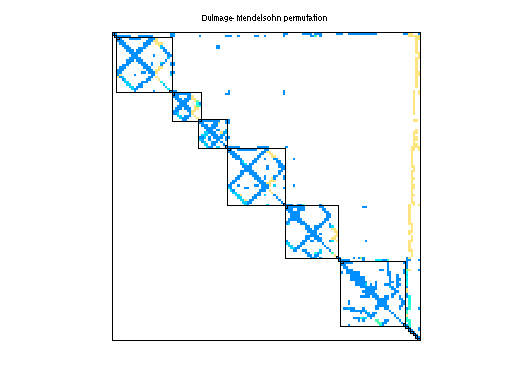

Mallya/lhr17 dmperm of Mallya/lhr17

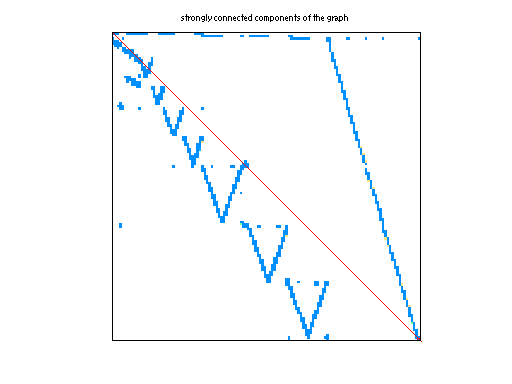

scc of Mallya/lhr17

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mallya
  • Click here for a description of the Mallya group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 MB. Use UFget(746) or UFget('Mallya/lhr17') in MATLAB.
  • download in Matrix Market format, file size: 3 MB.
  • download in Rutherford/Boeing format, file size: 3 MB.

    Matrix properties
    number of rows17,576
    number of columns17,576
    nonzeros379,761
    structural full rank?yes
    structural rank17,576
    # of blocks from dmperm1,807
    # strongly connected comp.31
    explicit zero entries2,214
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Mallya
    editorT. Davis
    date1994
    kindchemical process simulation problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 17576-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD33,691,522
    Cholesky flop count1.7e+11
    nnz(L+U), no partial pivoting, with AMD67,365,468
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD812,224
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,670,800

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 2214 explicit zero entries.

    SVD-based statistics:
    norm(A)19.9128
    min(svd(A))4.71721e-23
    cond(A)4.2213e+23
    rank(A)17,182
    sprank(A)-rank(A)394
    null space dimension394
    full numerical rank?no
    singular value gap4.87732

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

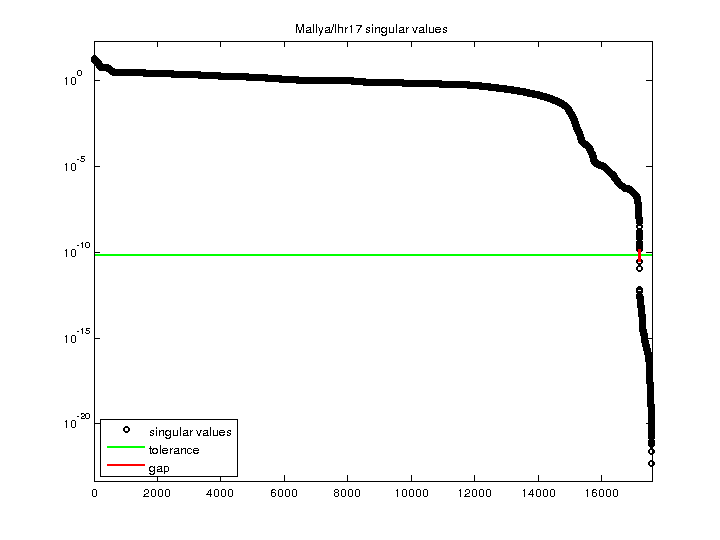

    Mallya/lhr17 svd
